Adventures in Making Hardware Part II

Hello and welcome to my blog.  This post completes a series in which I’m building a butler’s desk of American black walnut, in this post I will complete the process of making hardware I’ve designed to function as a stay.  Where we left off my concept had been formed in brass and the parts were ready for trial installation.

The first step taken is to cutout for the foot on the door’s interior left side and the cleat on the right side.  I’ve designed the foot to wrap around the outside corners but not to show on the cabinet face.  The installation also allows the screw connections to grip both the door panel and the supporting batten which was cut into the door sides.

After marking out the lines with a knife and kebiki gauge, I use a large paring chisel to create a recess along the mark which helps reduce the change of splitting out on the opposite side of the mark.



img_4599

img_4566

Next I pare out the remainder of the mortise.

img_4567

Followed by marking out then paring into the sides of the mortise.

img_4601

img_4604

Finally I pare down the sides from above, then remove the remainder by cutting to the knife mark from the side.

img_4606

Test fitting the parts reveals a tight fit.

img_4608

Next I use a birdcage awl to start the screw holes.

img_4610

Followed by installing screws for both the foot and the cleat.  Moving on, I began locating the stop inside the case, which took some careful measuring as I wished to avoid taking apart the case to gain access from behind the closed door.

I took measurements from the bottom of the case to the center of the foot and applied that to the stop to align the two pieces when the door is closed.  I then took a measurement of the height of the assembled foot from the front of the case and applied that plus some additional clearance.  After locating the stop I carefully cut the mortise.

These two pieces are made to work best in proper alignment, so I took care to ensure that the clearance between the door and the case was accounted for in making the stop.  This also helped to keep the linkage from scuffing the case side.

img_4568

Now with the linkage installed I scribed a mark behind the stop.  This mark would indicate exactly where the rear pin would need to be located.  For the pin I decided to use a machine screw identical to that used to connect the foot and the linkage.  I went back to the to the Bridgeport once again, drilling and tapping for the machine screw.

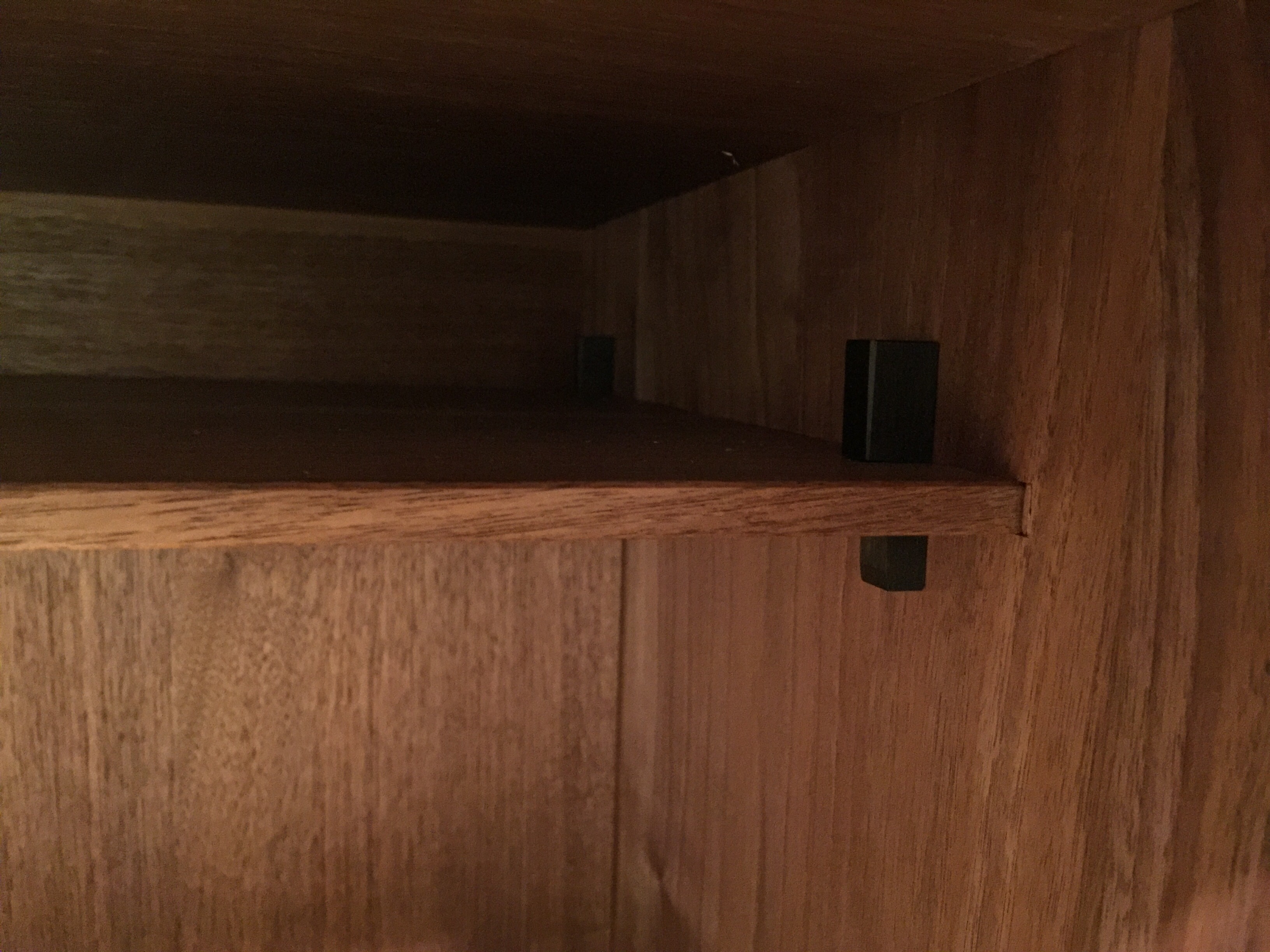

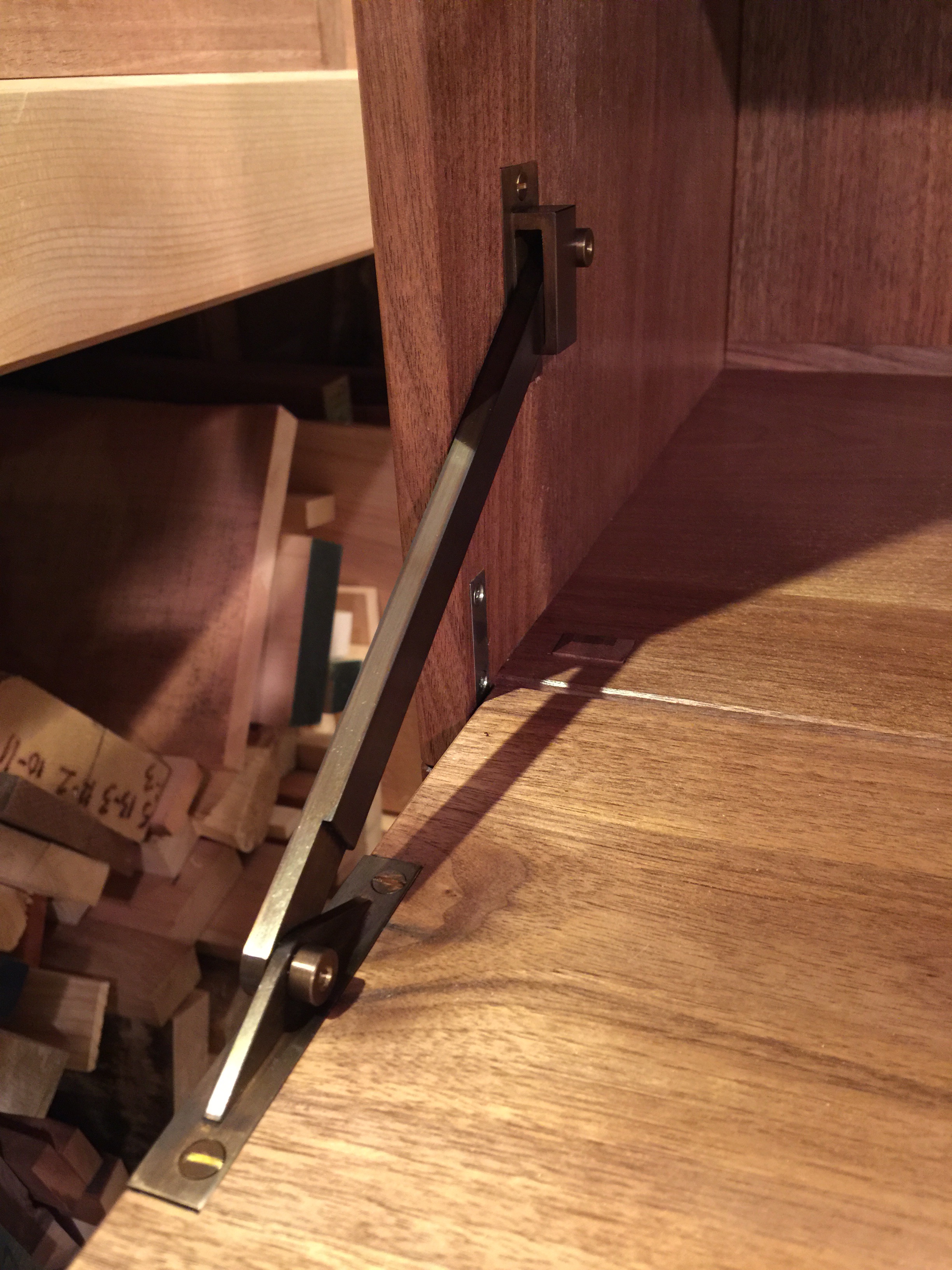

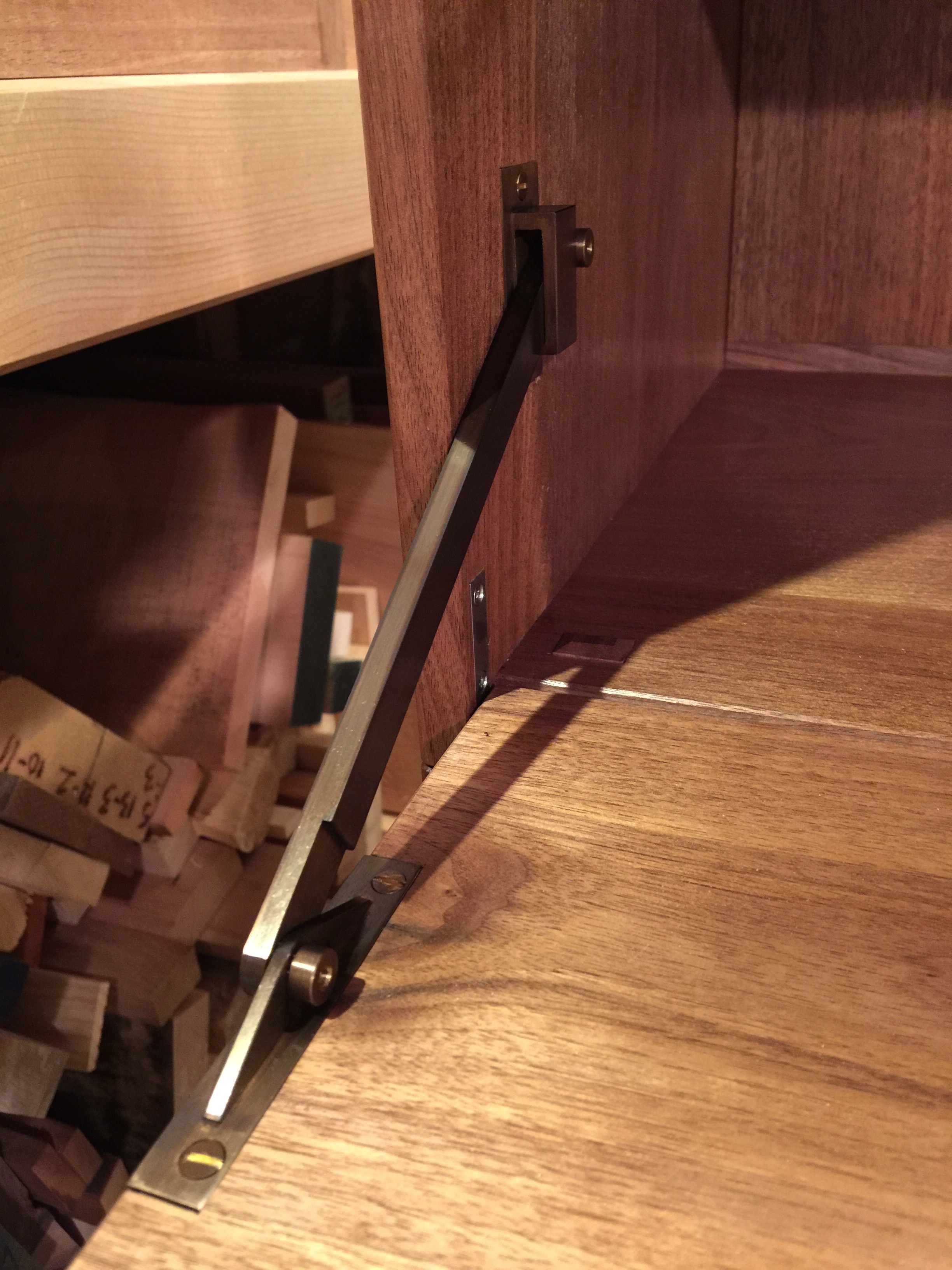

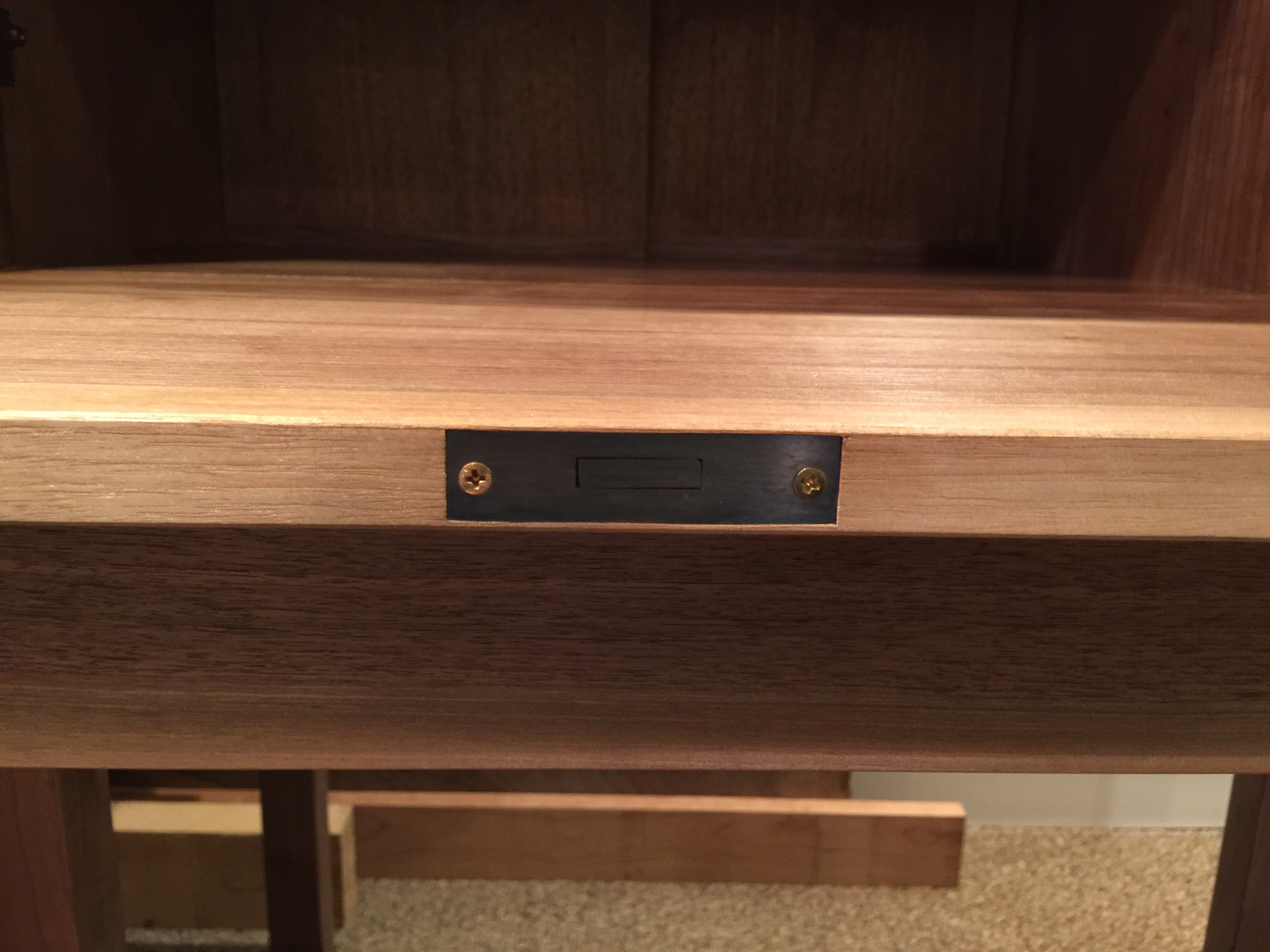

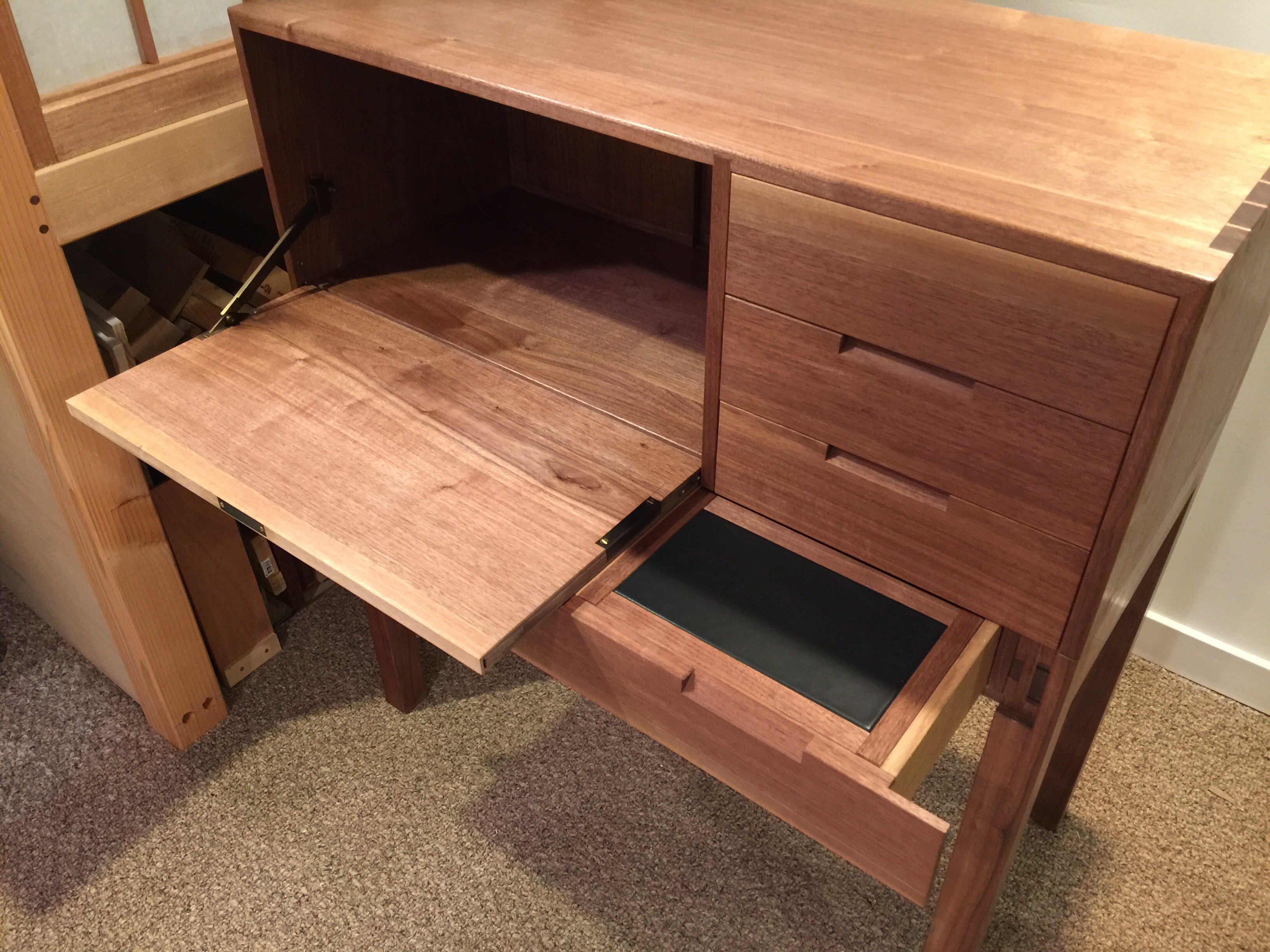

Finally, I applied the bluing finish to the hardware then installed both pieces.

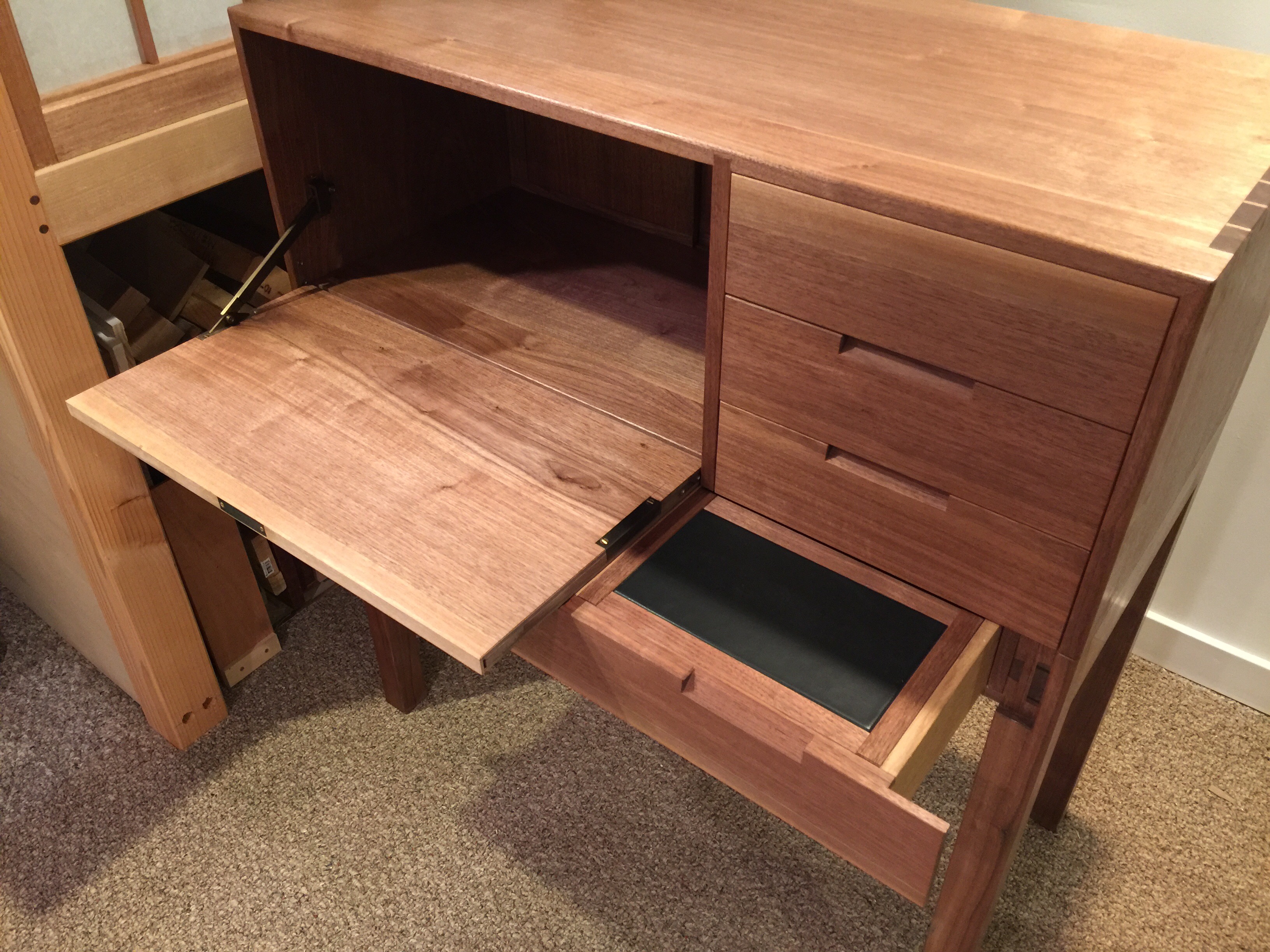

img_4575

img_4571



img_4572

img_4570

img_4612

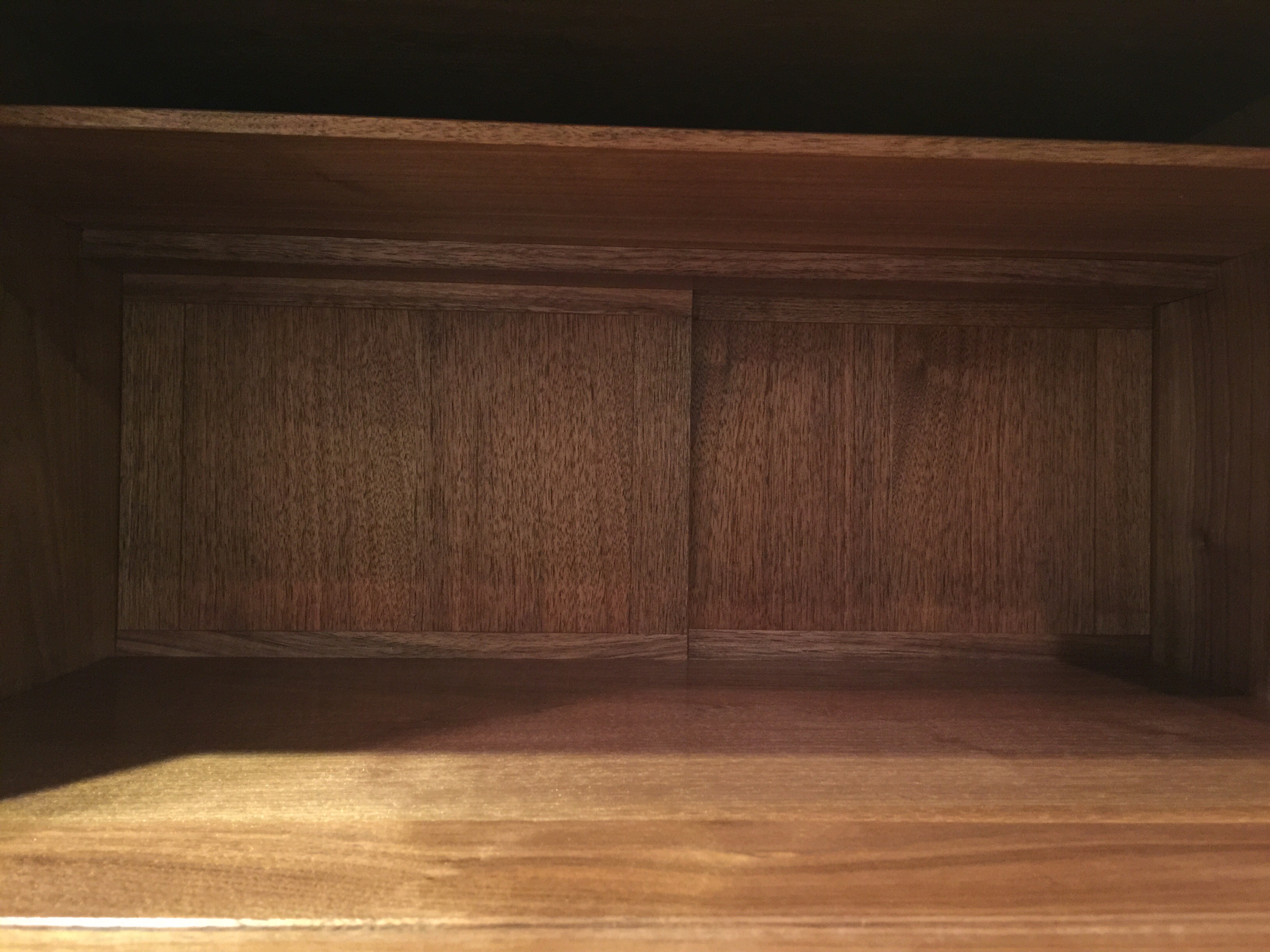

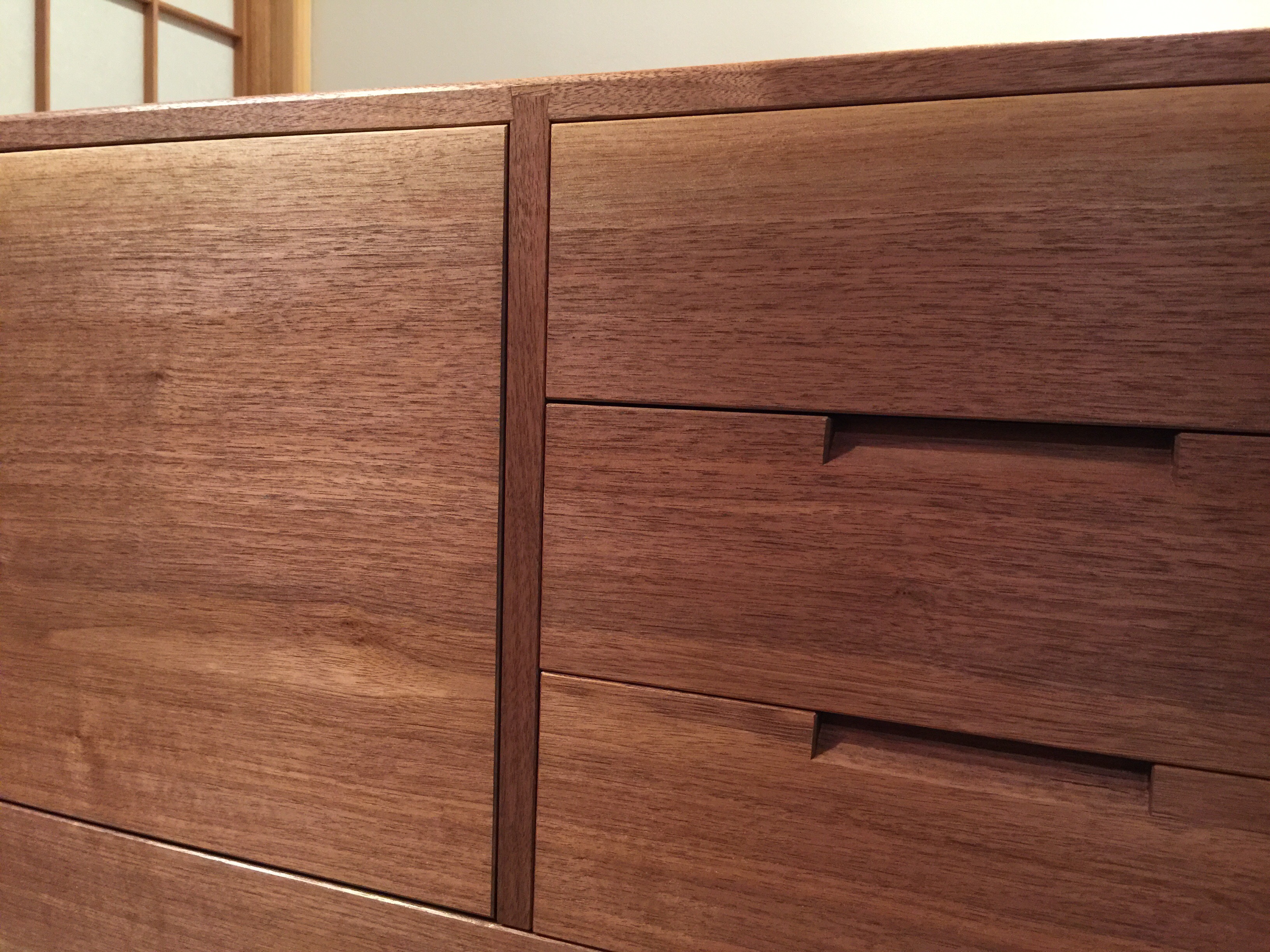

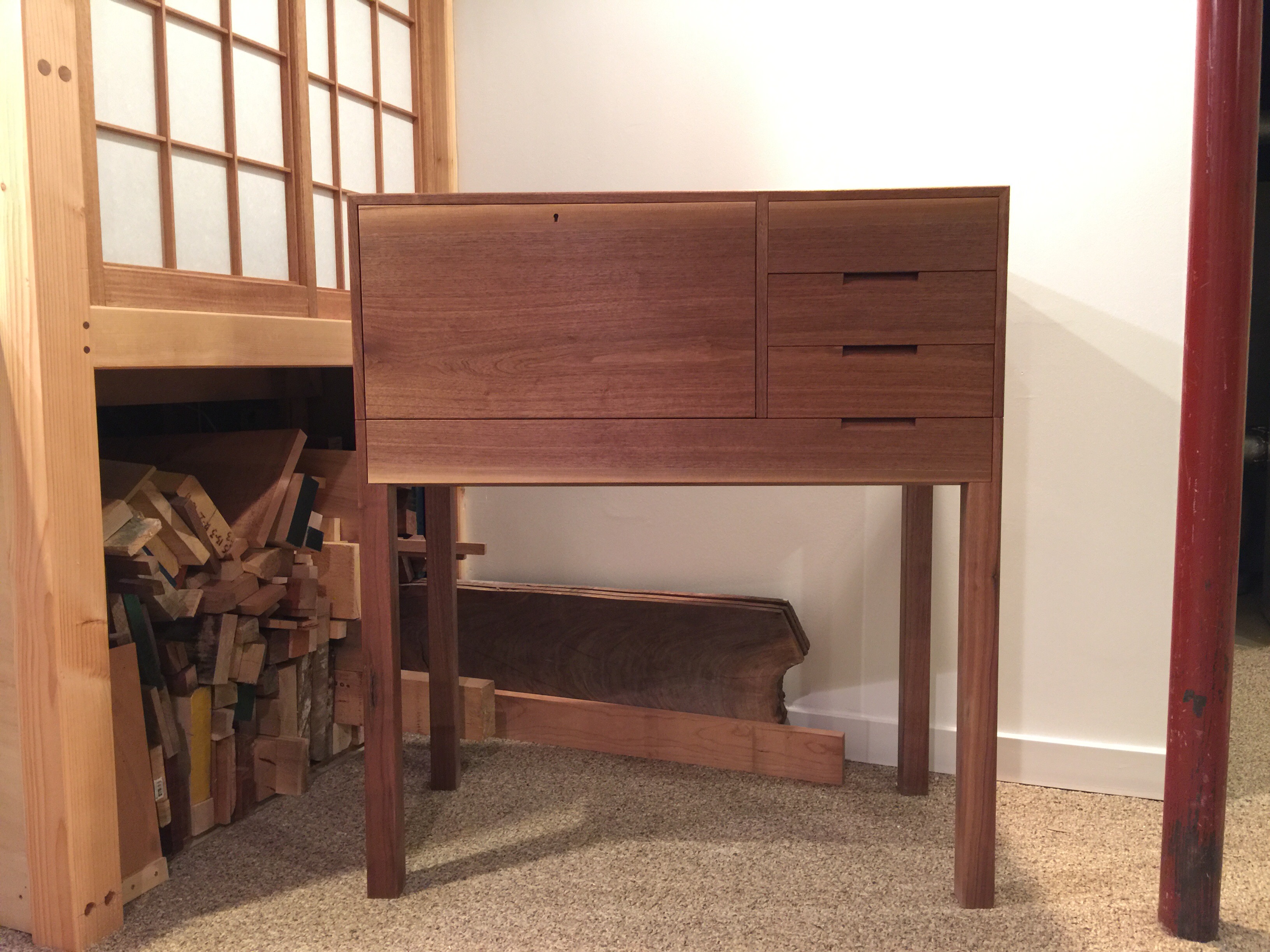

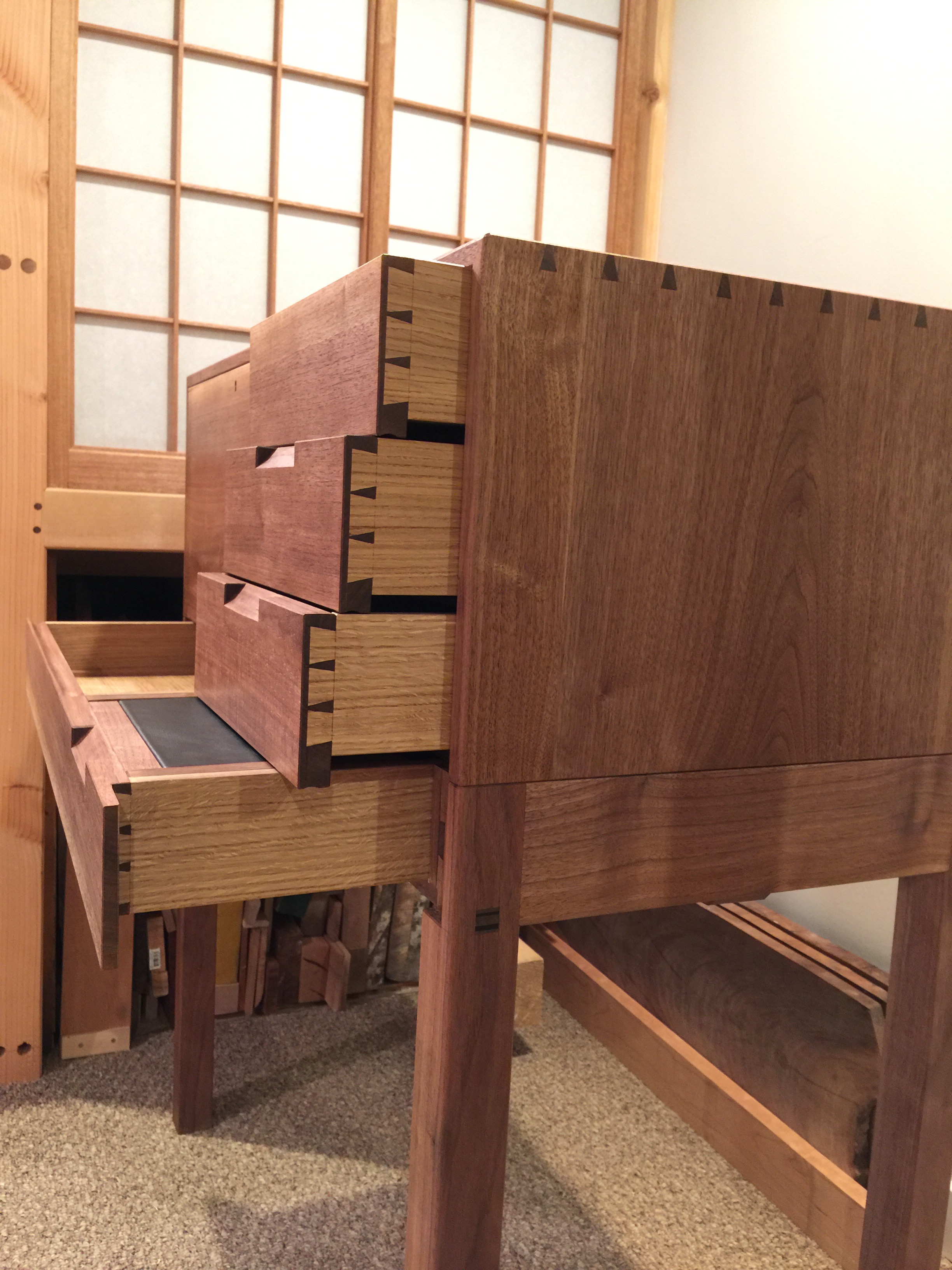

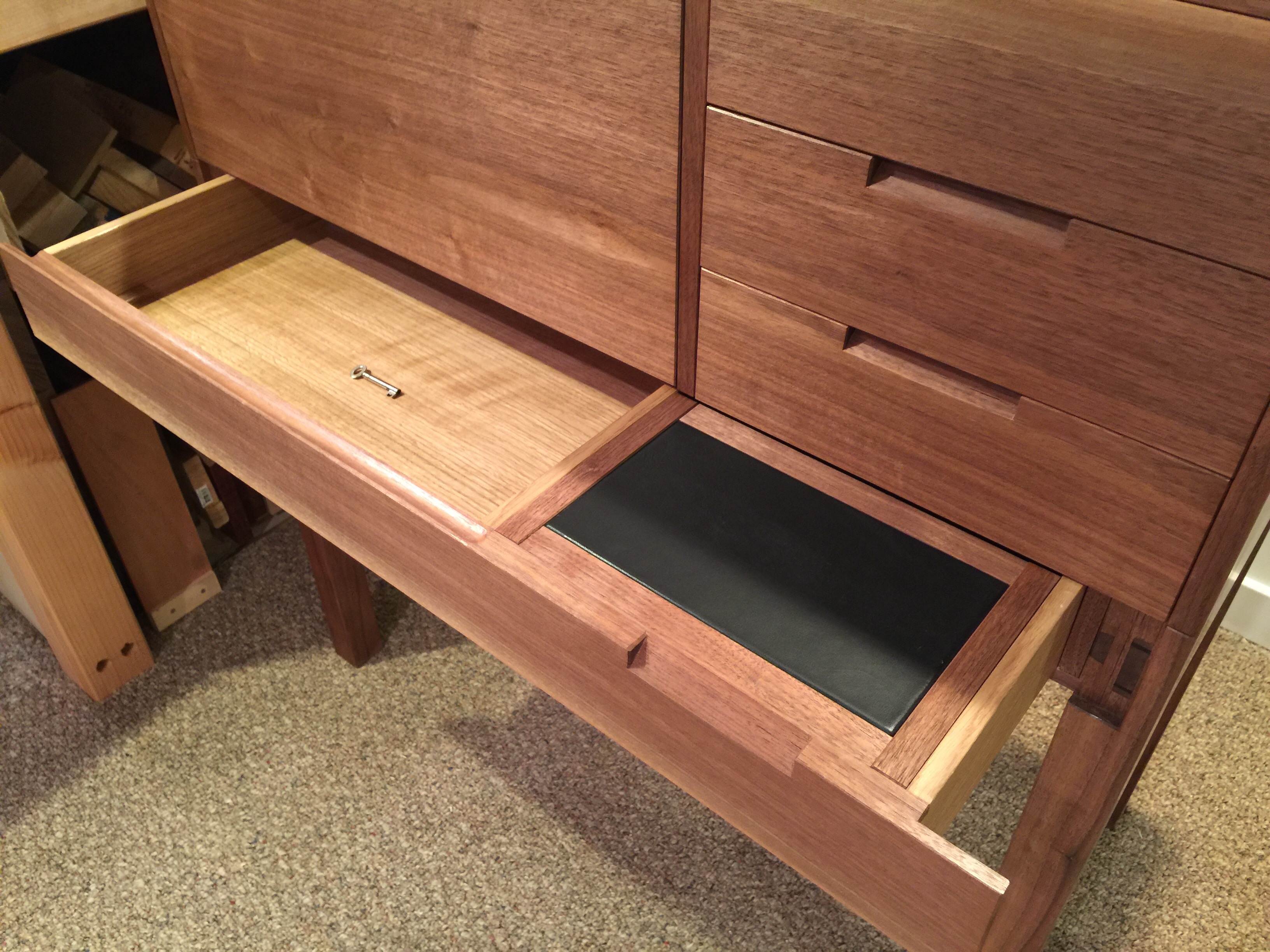

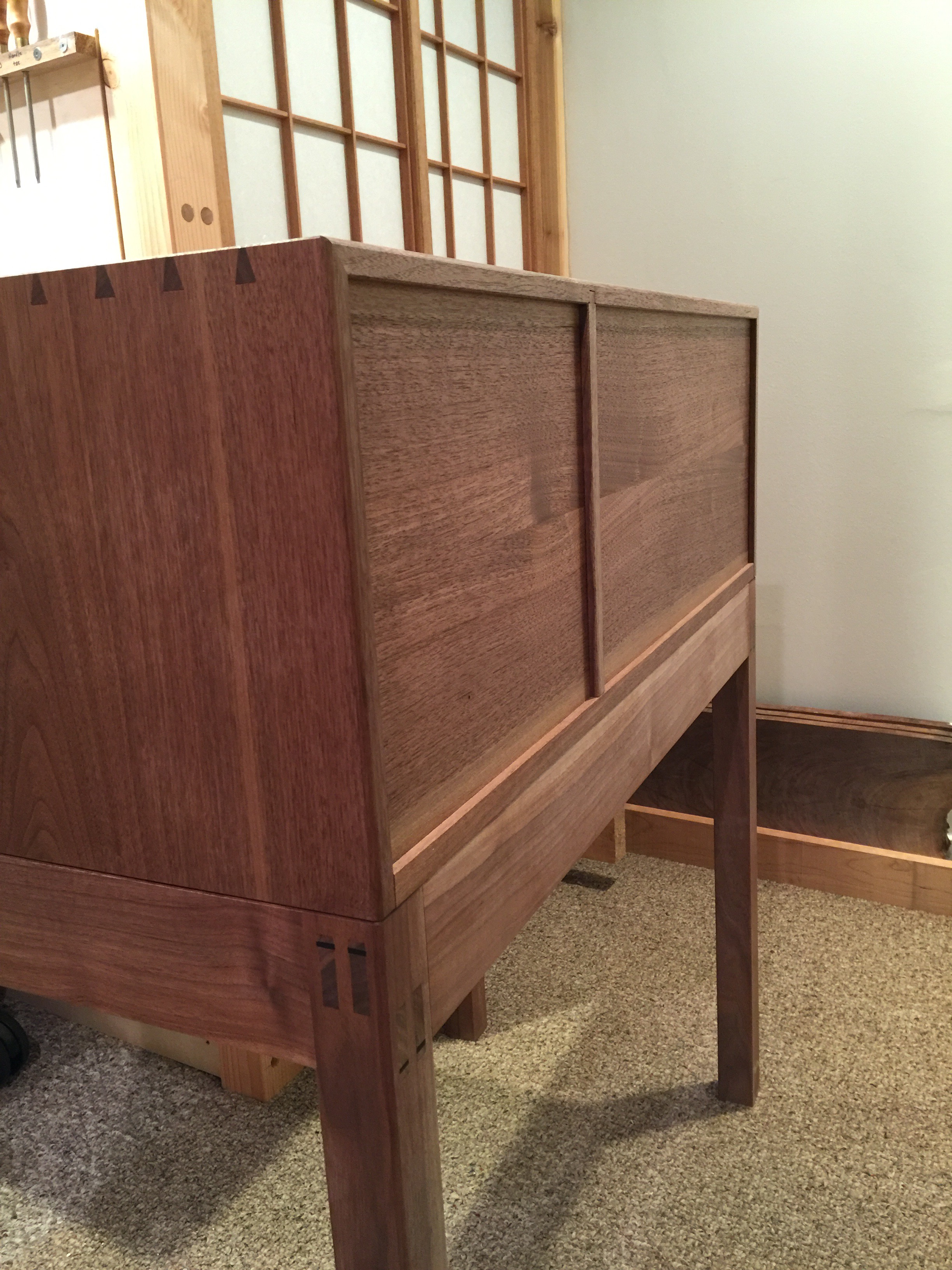

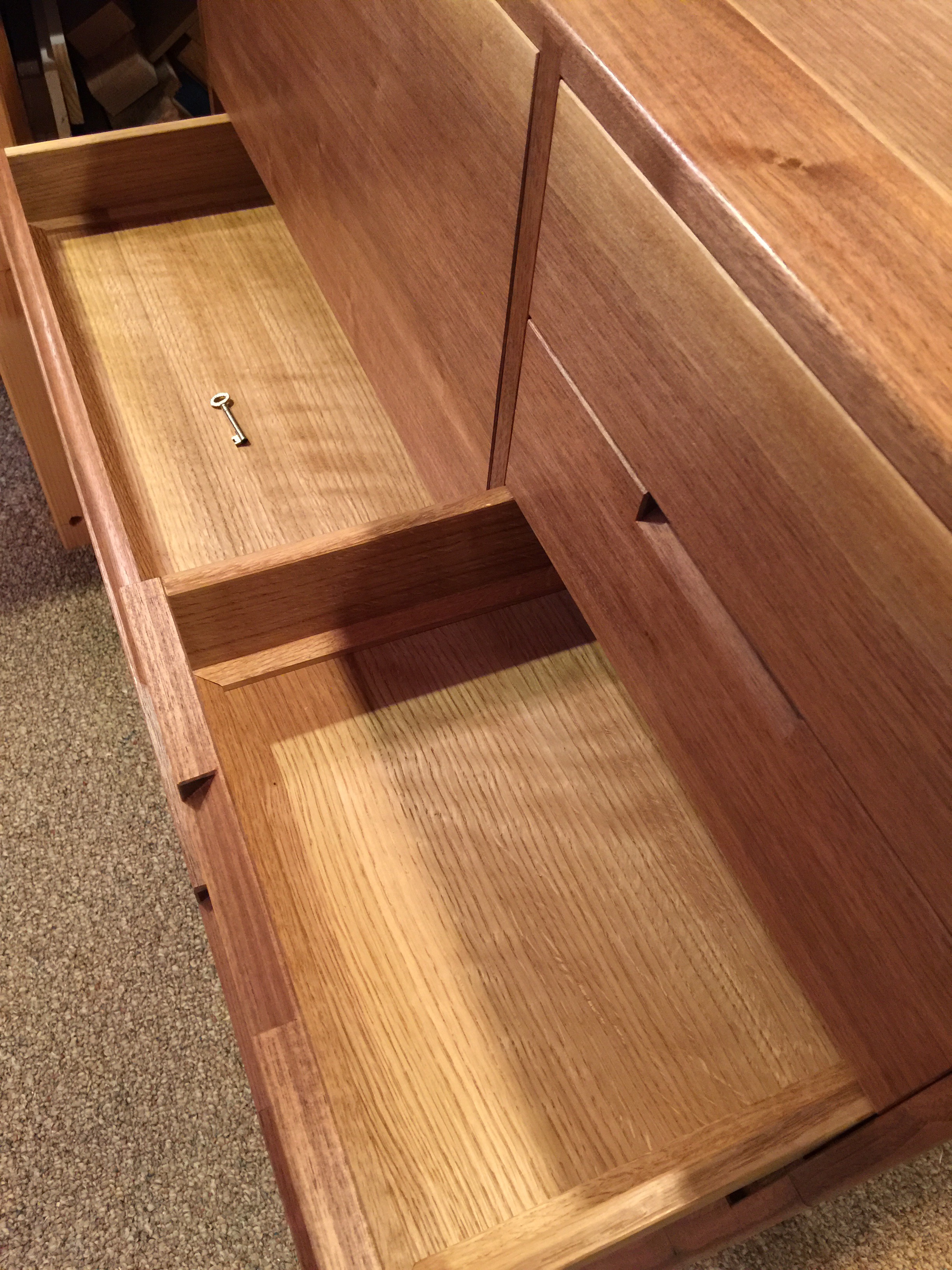

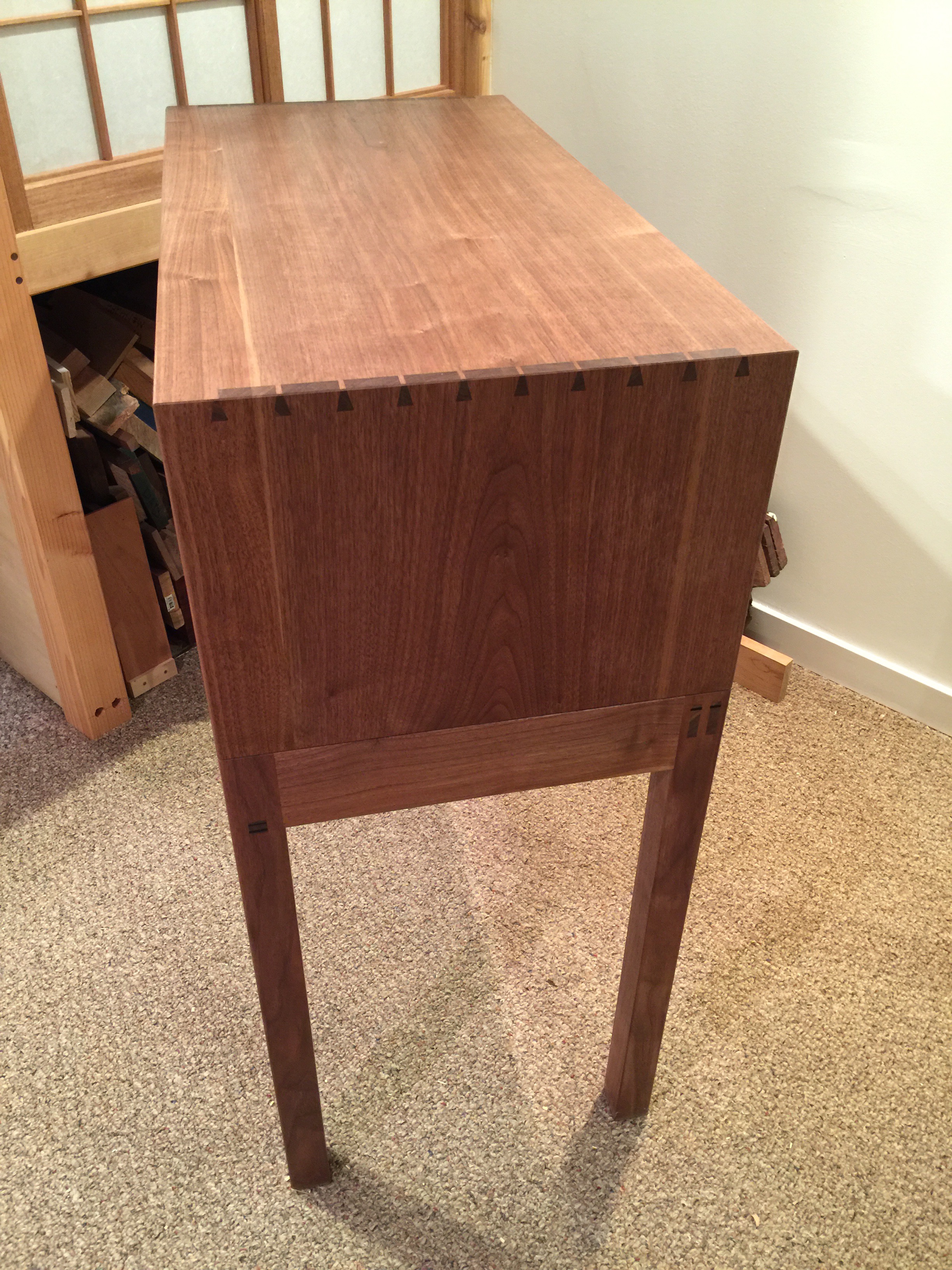

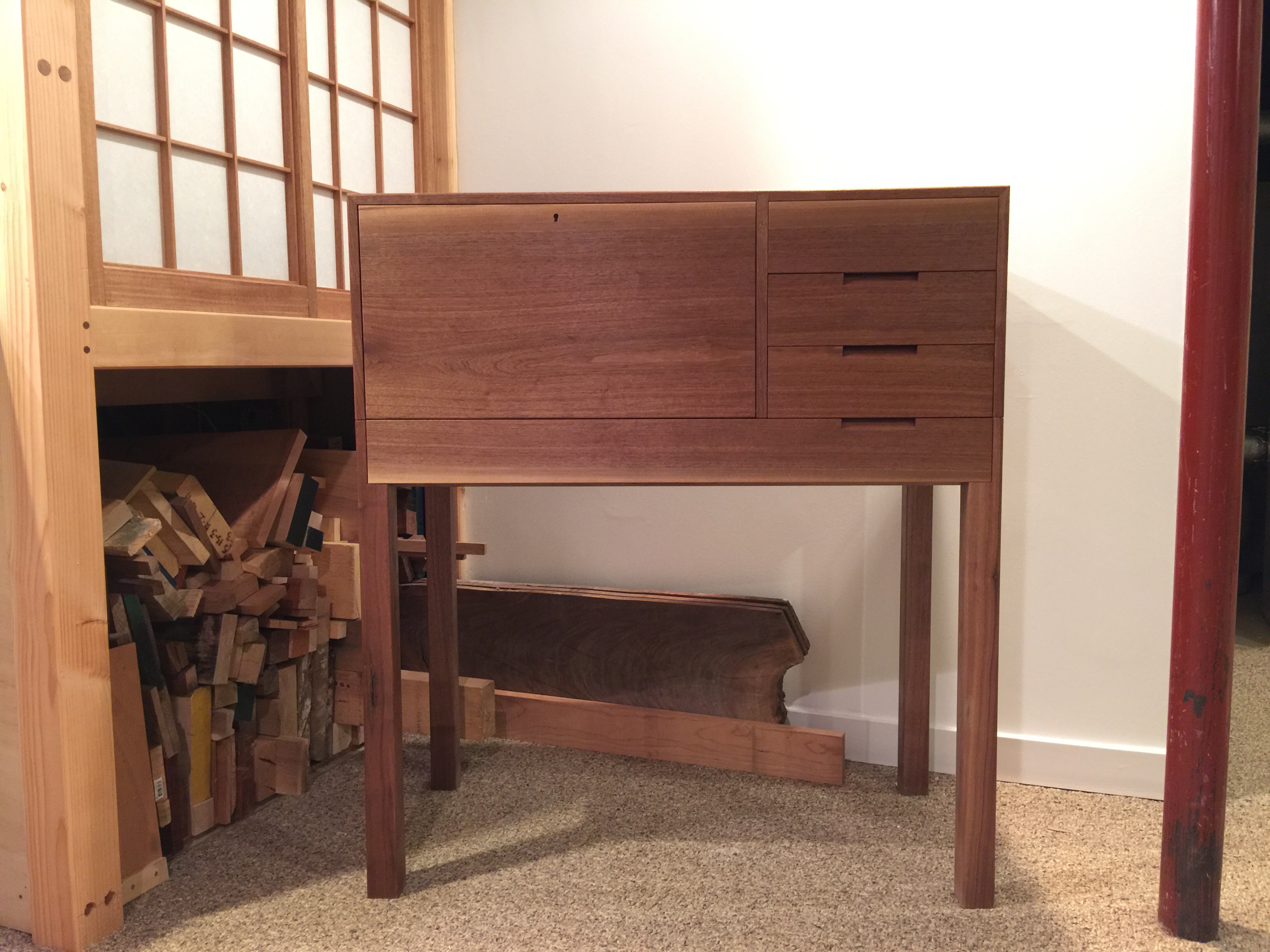

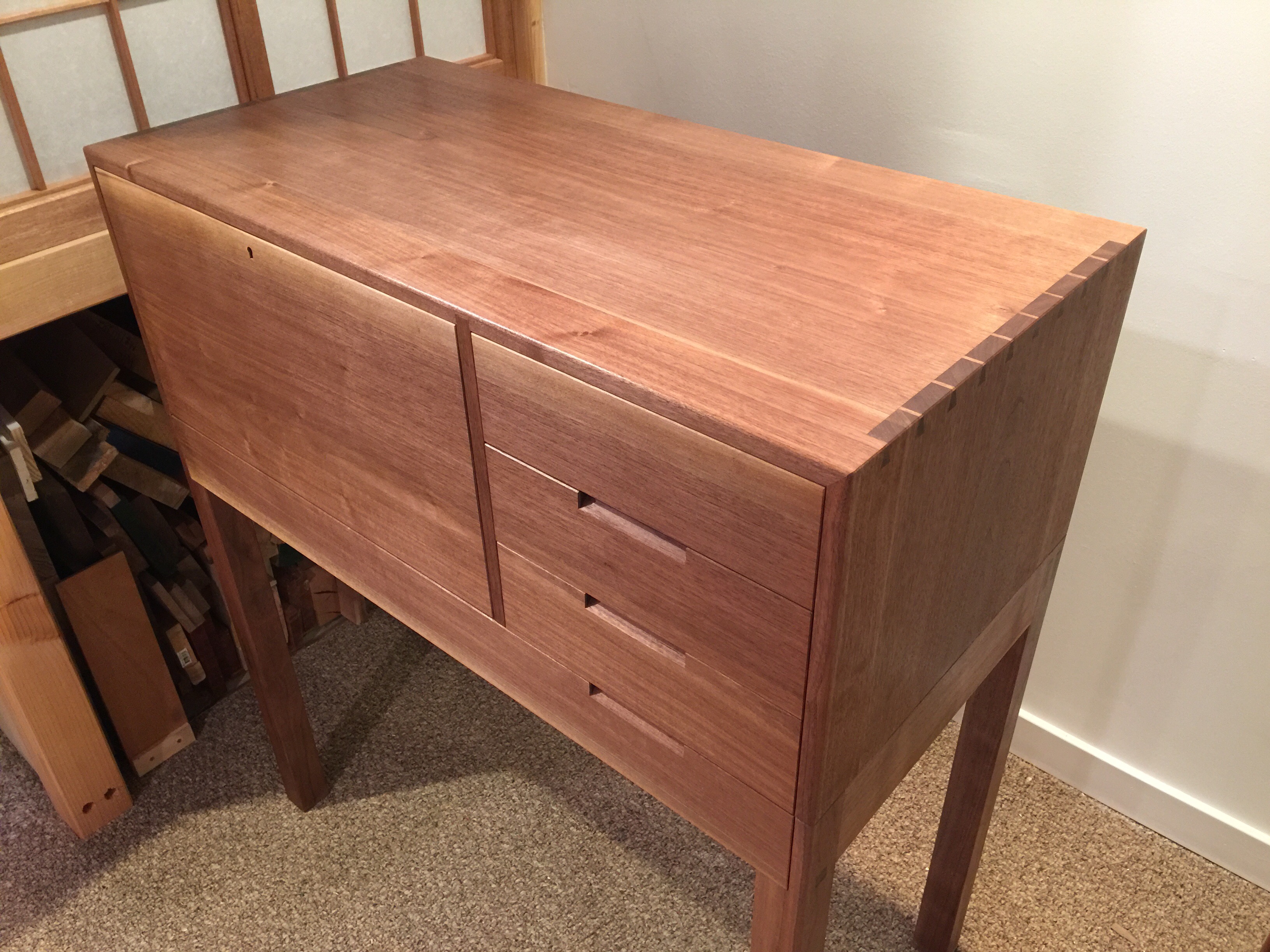

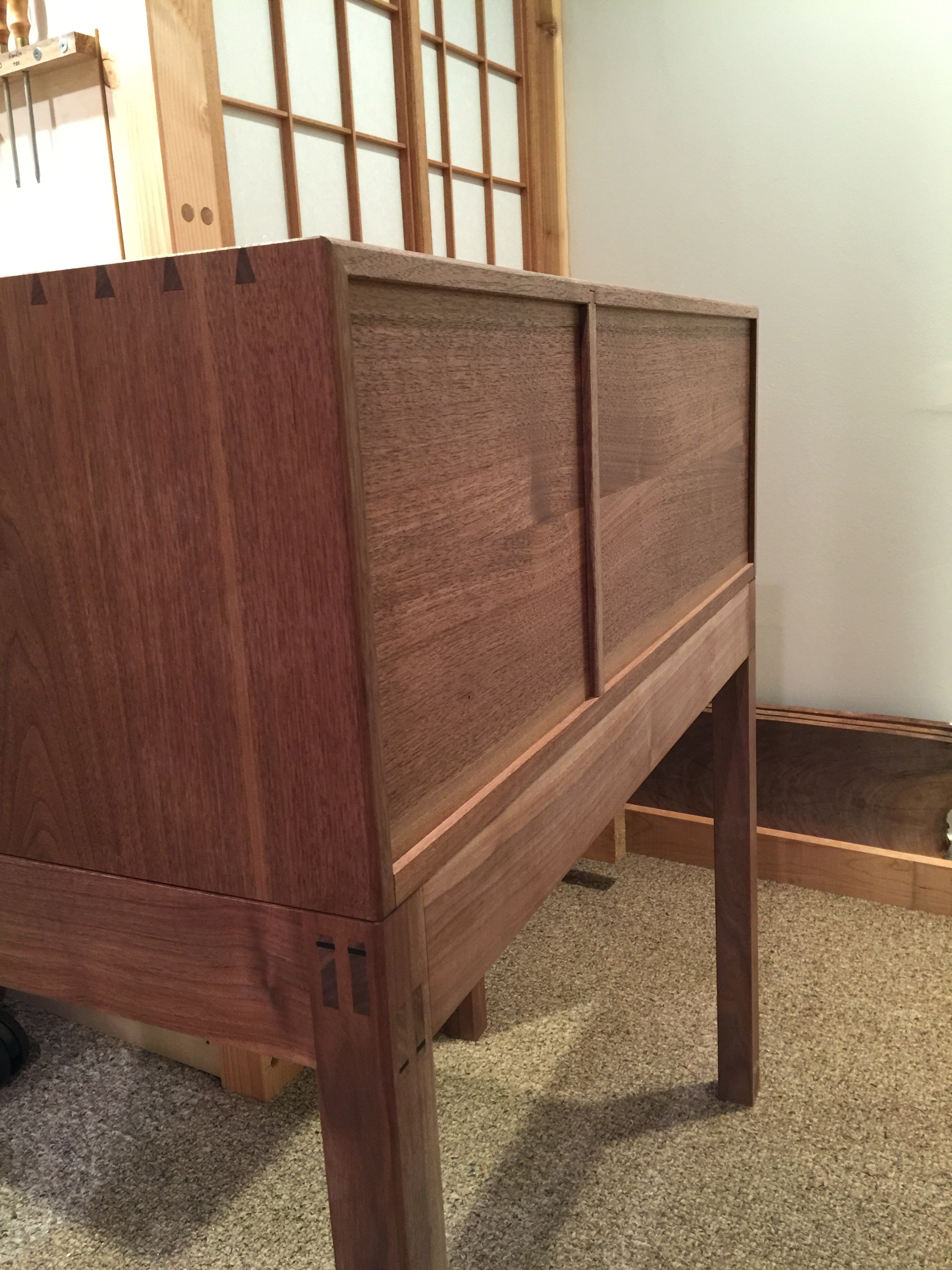

This completes the Butler’s Desk series, I hope that you have enjoyed following along and look forward to your comments below.
