Humidor Build – Interior Part 2

Hello and welcome!  In this series I am building a walnut and gaboon ebony desktop humidor.  This post will focus on the interior trays, made from spanish cedar and built in the method of kumiko.

Kumiko is the lattice work in shoji and it can range from very simply designed to incredibly complex geometric arrangements.  Shoji are intended to be light and strong and so each and every part must add to the integrity of the structure.  Kumiko latticework are constructed of overlapping joinery, mortise and tenon,  and mitered corner joinery.

A good humidor tray must also be light and take up very little space, made well it should fit nicely into the humidor, moving like a piston as it is installed or removed.  A tray which can retain its shape without twisting as it is installed and removed will be able to be fit nicely, and a piston fit gives the assurance of quality in craftsmanship.

The reason why I’m using a lattice work in the base of the tray, rather than a panel with holes in it, is that the lattice work will allow free airflow and will increase the trays resistance to twisting.   The panel is superior in resistance to racking, however I will be able to counter those forces with tight corner joinery.

The grooves have been made for hinges and the hinges are ready for installation.  A humidor lid must close tightly, so some parts of the cutout for the hinge were different from that of a typical hinge.  Normally the hinge leaves would be installed flush and the the gap between the leaves, set by the manufacturer, is used as clearance for subtle inconsistencies to be hidden between the top and bottom of a box.  For a humidor I take the overall thickness of the hinge and split it in half.  That means the hinge leaf is set slightly below the surface, and there is zero clearance between the top and bottom of the box.

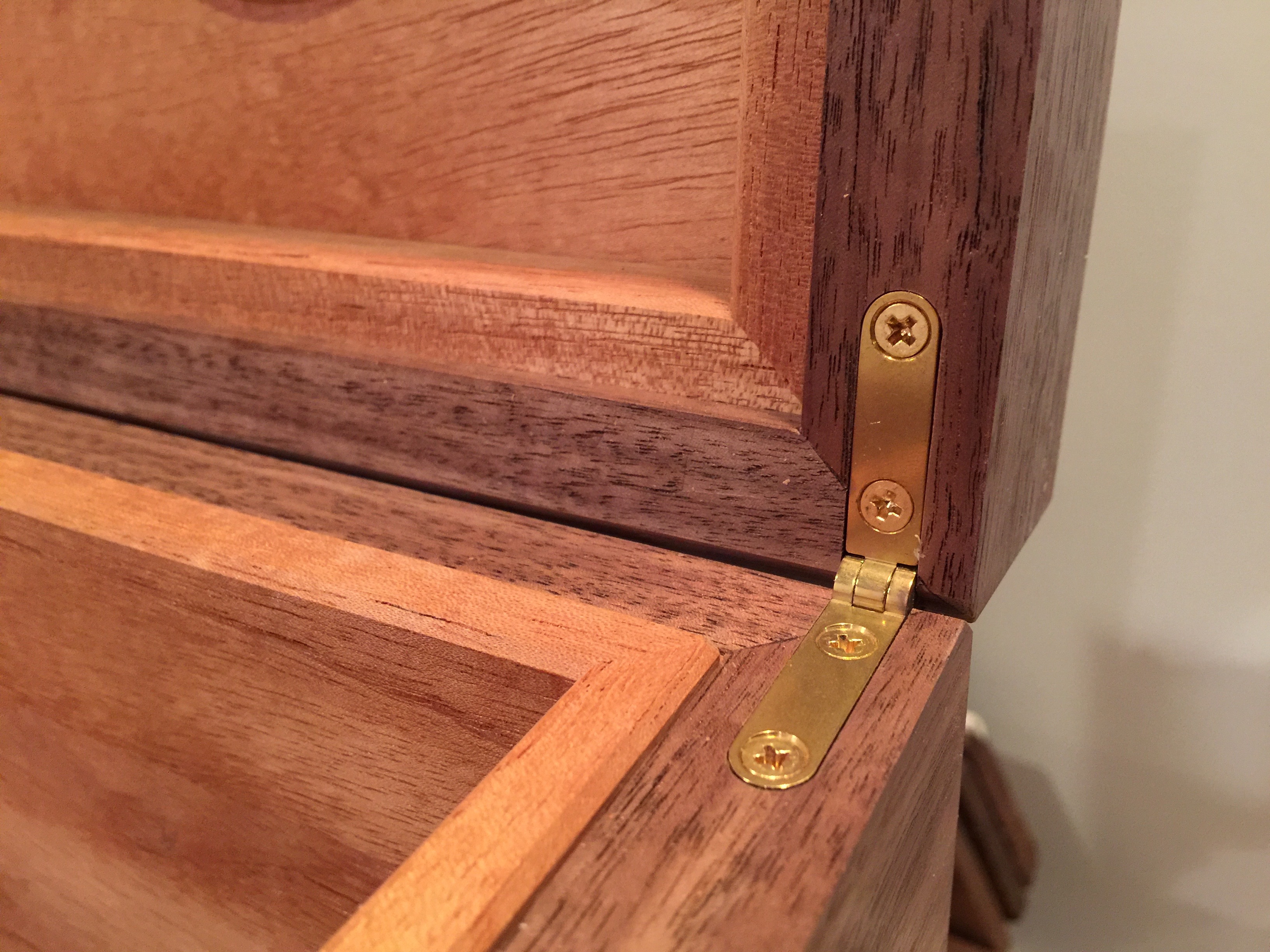

I like to have hardware flush to the outside of the box whenever possible and so I set my hinges in, adding a minor complication.  In this case the hinge has a built in stop, which protrudes from the hinge.  To accommodate this stop I used a 3mm chisel to make a small notch for each part of the hinge allowing it to travel in its normal arc while inset.

Here I am using my birdcage awl to locate and start the screw’s recess.  The awl allows the center of the screw to be set precisely and allows the hole to be started, the steel screw in this size can cut the hole without otherwise pre drilling.  This approach makes for a very reassuring assembly, having moved wood aside, rather than cut it by drilling.  The block of beeswax is there to help things along.

ef72fe03-a02f-435e-b45a-d5e243eadb6f_zpsuz1tqqbp

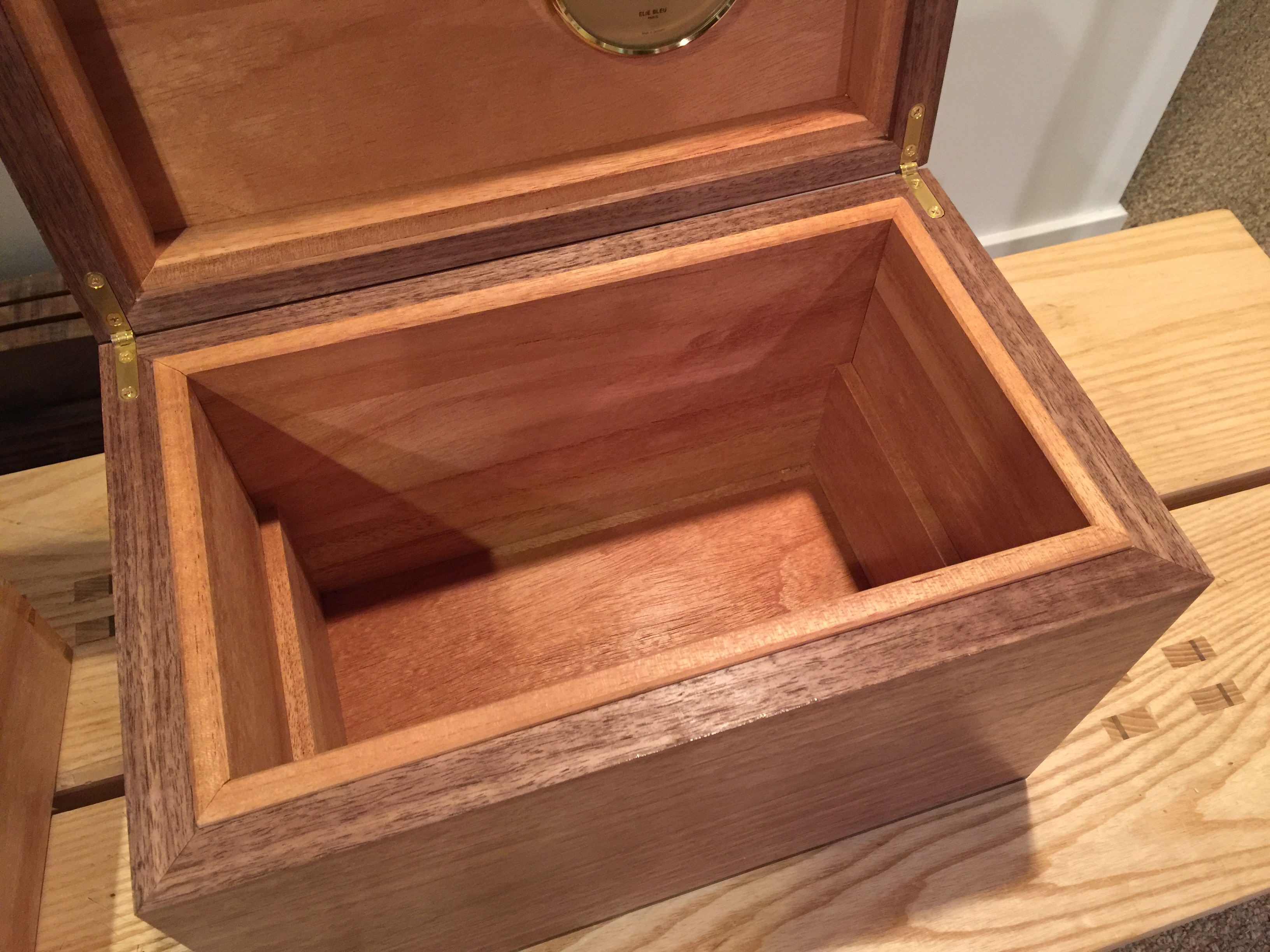

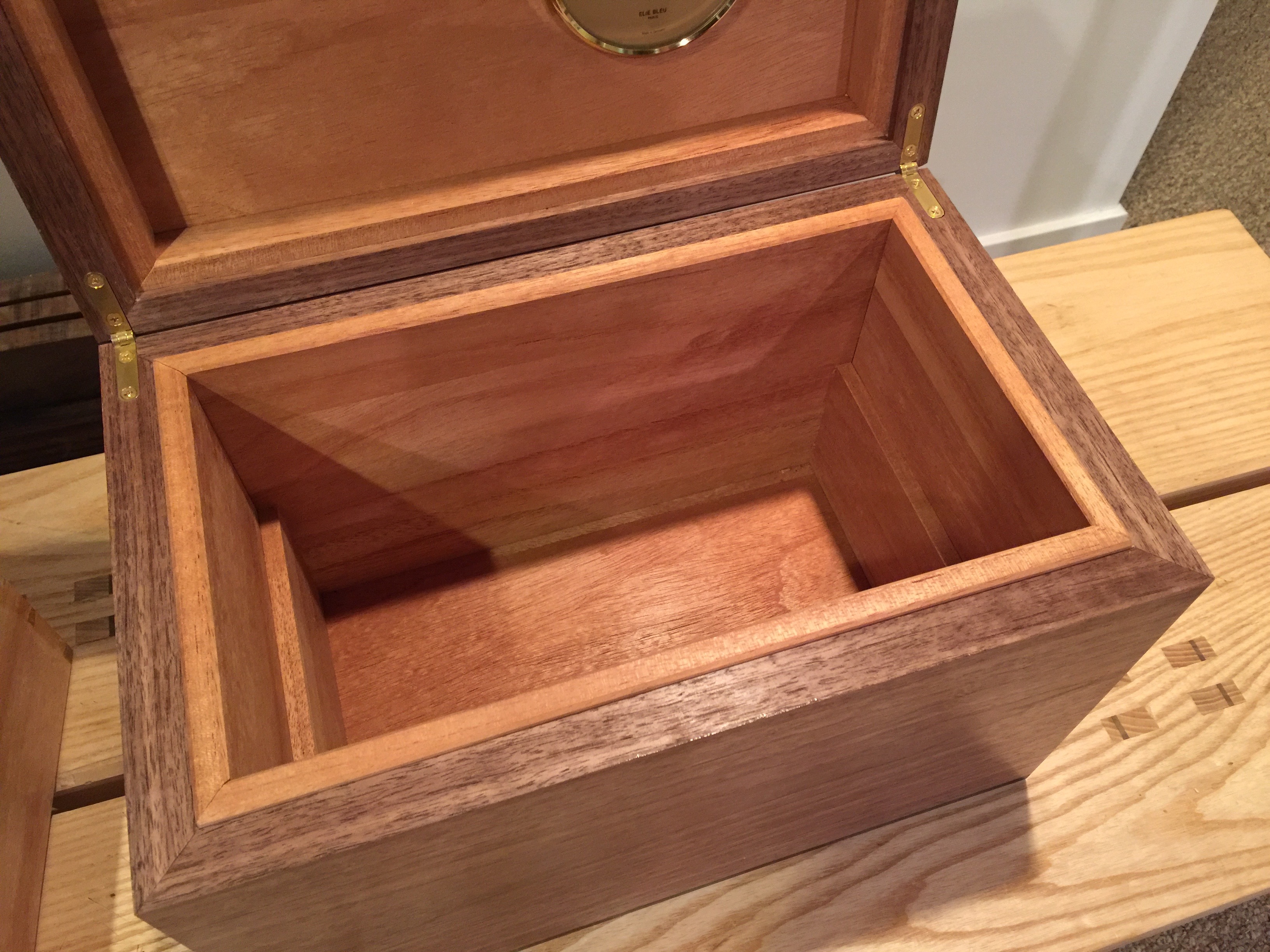

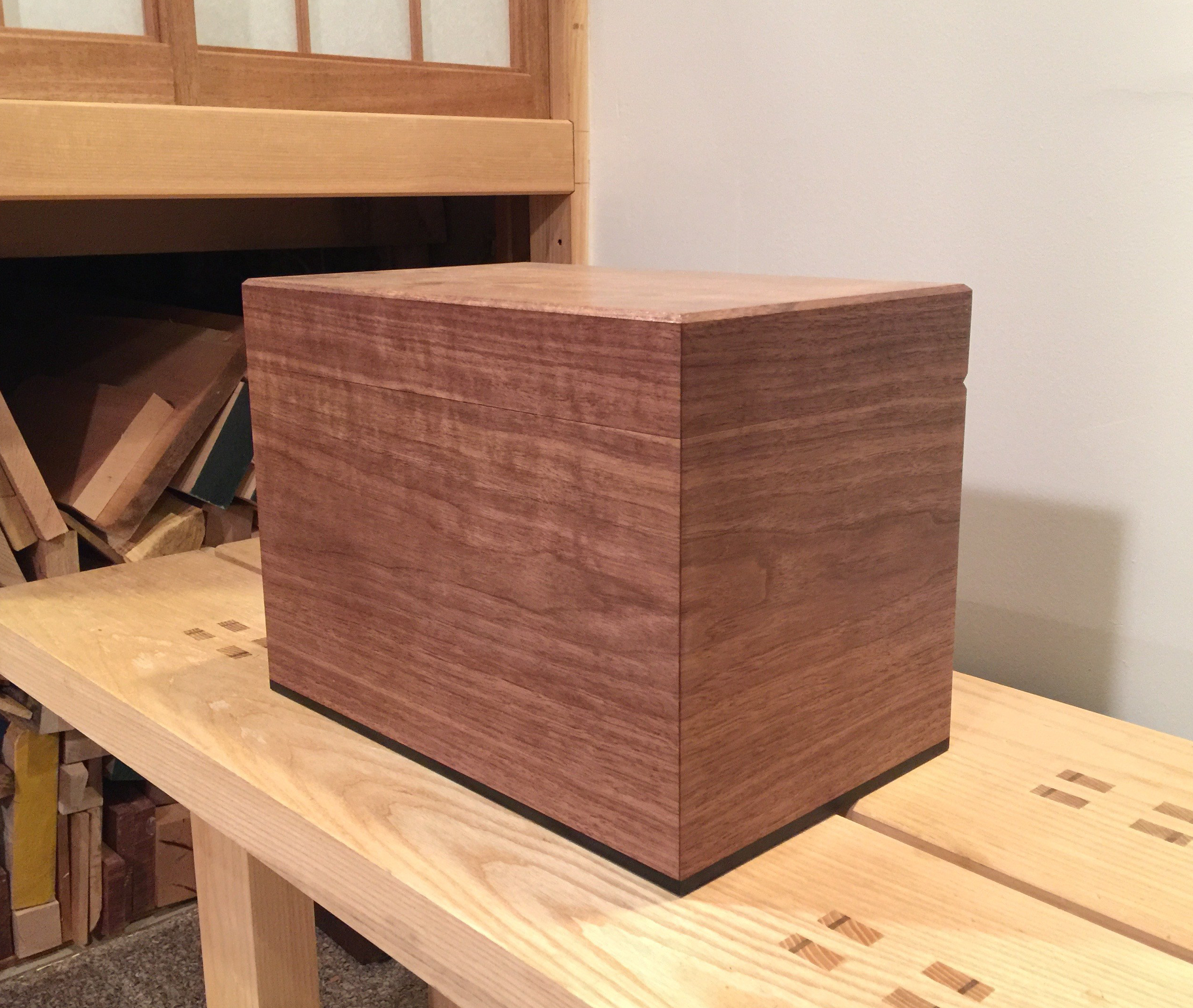

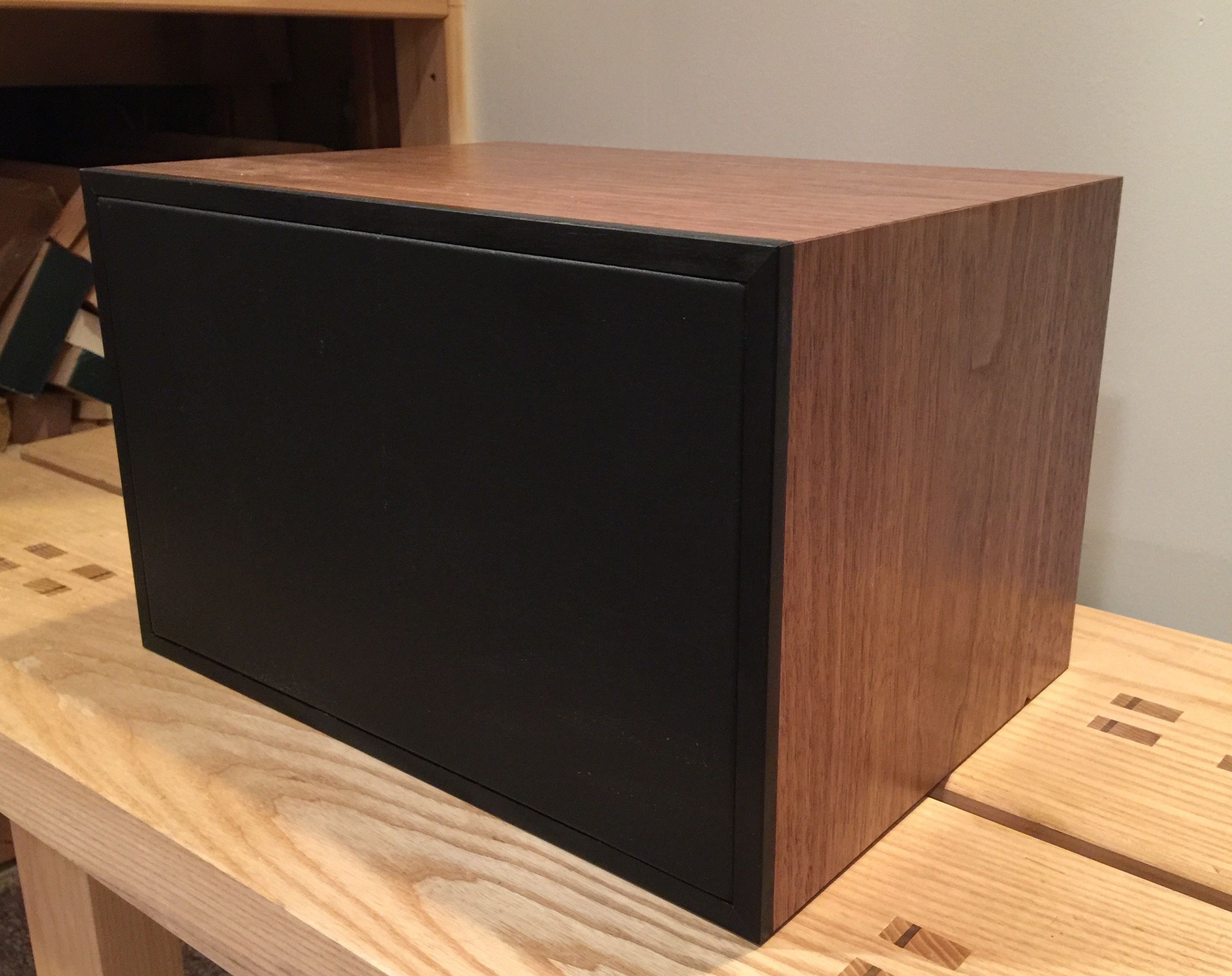

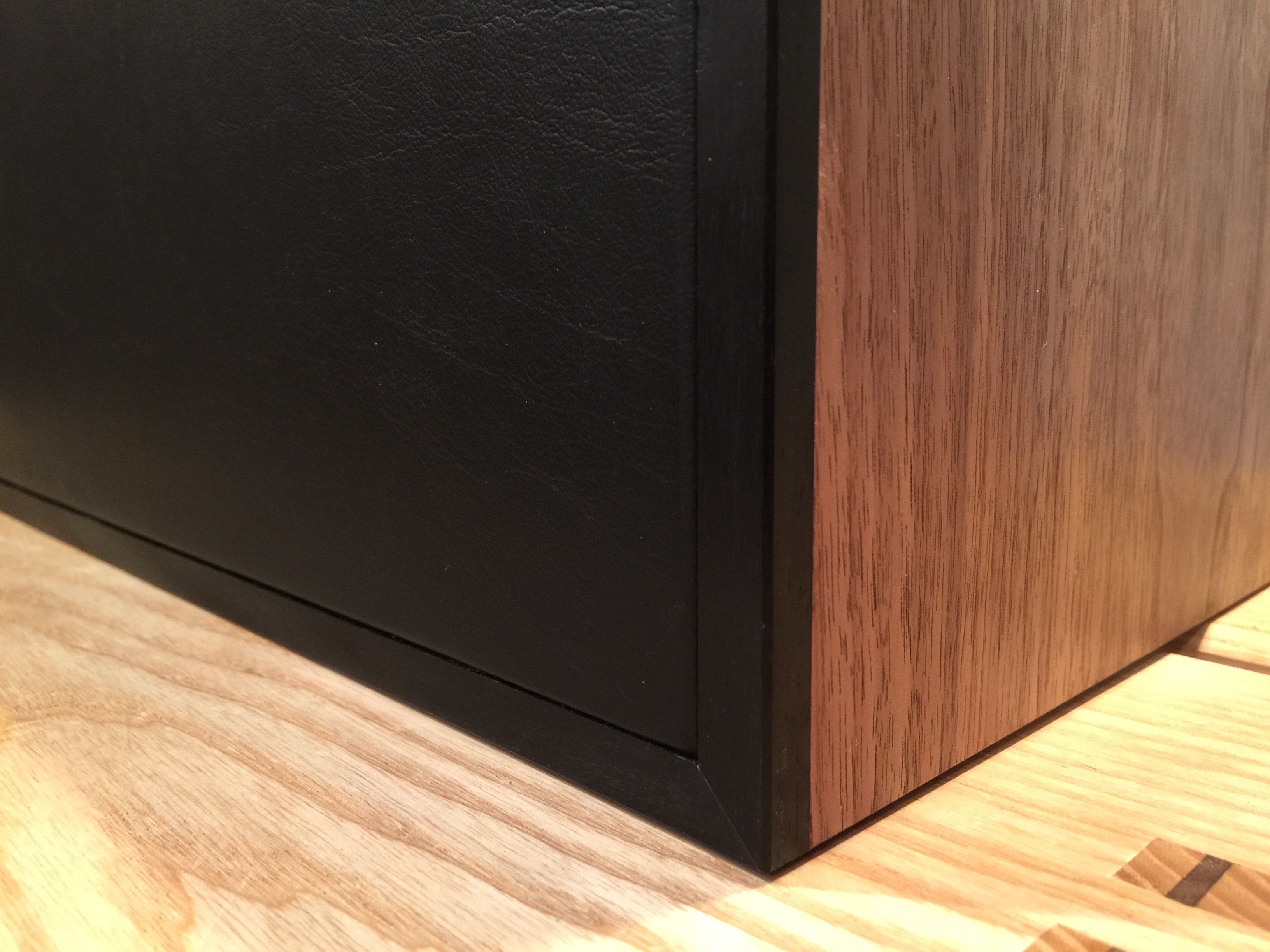

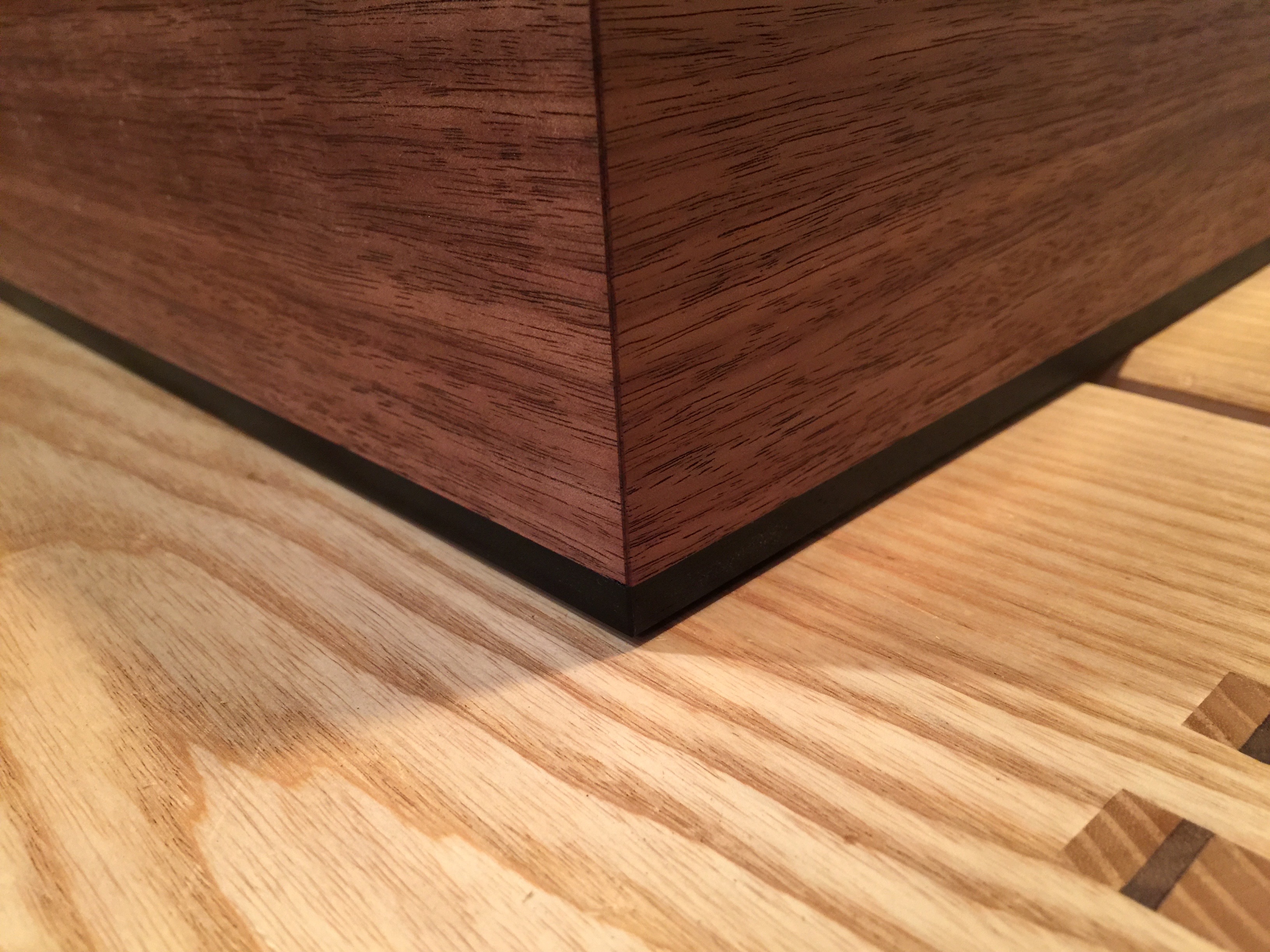

The box is now functional, and hopefully you can now see the purpose of the rear chamfer as well.

4f4488a0-e83c-4559-926f-97327e221900_zpszfjidgpe

4effd35f-f192-46a5-8f0b-171dd723e83f_zps2vxhw62z

I’m considering a hinge called the Neat Hinge II for future boxes, any feedback from those who have used it would be appreciated.

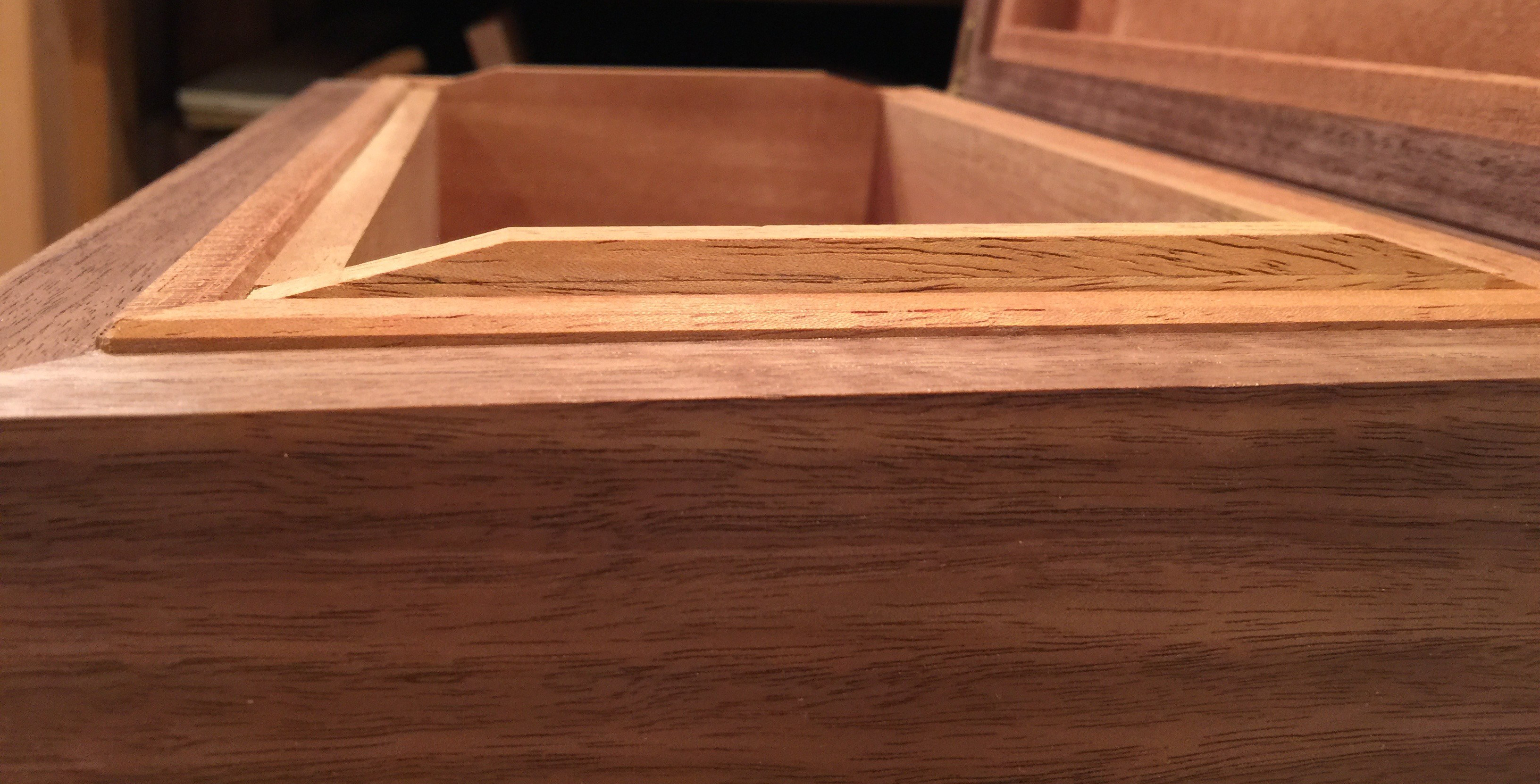

Back to the liners, to hold up the interior tray I’ve created two uprights.  These are cut to fit and placed in, they fit very tightly (I can’t remove them once they’re pressed in) and once some humidity is added to the box the cedar will compress around them locking them in.

024d1413-7f7e-4445-99e3-5f1612ff6fe6_zpseehfkfnr

I’ve set aside stock to begin the tray, starting with 1/2″ material which I will process down to just under 3/8″.  The 1/2″ material has seasoned without much warping so I’m much more confident in this material than the thinner stock.

20a253b1-a785-496a-9f46-f53daa0a7dce_zpsjynzitvz

e9bcb27d-0f03-47bf-8f30-5b782b9064f0_zpsvrzwn3ng

I’m running the jack plane long grain on these board, allowing me to take the wind out by biasing my cuts and staggering my starts.  I also bias my cuts toward outside or inside to remove cupping.

2be1747e-9739-44d7-af47-4292c90938ea_zpssjs1pn0a

Then onto the try plane to true up the surface.

e0a7b0a3-6256-43cc-9b0f-d97e83a67624_zpsbjxugkmb

Last the Kanna is used to put a bright finish and remove any lingering roughness.

6188bd4e-8740-4184-99c1-3bc8c4213468_zpsbasybg1w

Now that the thicknessing is complete, it’s time to put square edges on the stock.  I’m biasing the end grain cuts to apply a hint of a taper, which will allow the tray to set into place nicely.  To bring these to length, I mark them using the inside of the box as a reference, then test fit until they seat nicely, this will make for a tray that fits very tightly (too tightly) but will allow me to plane the outside of the tray lightly to fine tune the fit.

6595b9d0-56f6-4abe-824c-af8c90fe1526_zpsg3htcoq9

While I’m prepping stock, might as get everything ready for the lattice work.

2f78157b-7b1f-467d-807c-7cbbadf4f775_zpsqmtircxi

Backing up the material with plywood while I cut the last edge flat.

90cb5cae-3c08-49b6-ac39-a7901ace84a1_zpsvdw8ymlw

Now that all stock prep is complete, I can clear my bench and begin dovetailing.  I don’t have a dovetail gauge for 15 degree dovetails, but I like to cut this steep angle on short dovetails.

e1fdd818-2d4d-4bfc-b39e-cdea0dfcb7a2_zpsr9avz9ew

This angle allows them to actually look like a dovetail and perform well in short heights, however it requires care when cutting to the line as it’s much easier to knick the sides allowing an ugly error to show.

The first cuts are with a rip dozuki.

b3b29404-e88f-44f0-8620-9a5f7a3058d6_zpsxxgtxjsg

I then cope out the center waste and saw the shoulders with a crosscut saw.

c3b1f2a2-ee33-49d3-bdb1-5c25733c6916_zpsu73pygns

All set and ready of for the line to be chopped.

6629e9db-ed91-492d-ab0c-4a283c7c648e_zps0omreohg

I first chop the majority of the waste ahead of the line, leaving about 1/64″ to chop second.  Then chop that and flip the board over.  I undercut slightly so that there is a nice flat on either side of the center.

0c13ee3b-a3b2-48b1-82ad-b2e8c3b02854_zpspqgqyzdc

The finished tails;

29afc038-064c-49d6-ac79-2350fa5e873e_zpsadzf0zok

For speed I ganged up my cuts on the tail board and cut both ends of each tail board.  Now onto the pin board, I begin by transferring marks.

d1d62eae-3733-4140-93c9-5a22dc4951b4_zpsjr2hdqza

Then cutout with the rip dozuki and cope out the waste.

50a351f8-4b92-4cc0-9d61-7d249f6d8f3e_zpsxprgfdjo

All set for a tight fit off the saw.  This is critical in softer woods and small assemblies like this.  A little bit of compression makes for a fitup that locks together tightly.

Finally I chop the lands and can begin a trial assembly.  I don’t want to assemble and disassemble many times, once is even too many but I will do so to try out the assembled tray in the box.

6279303c-a5ac-4594-b4f2-a478002cd124_zpspql3il90

The tray slides into place after some minor tweaking with the hand plane.  I may need to work the outside slightly more after moisture is added to the box liners.

8f6f7380-8c35-4ba0-8c08-f7068ce51c7b_zpslipiuzvm

Now that the outside of the tray is assembled, I can begin making the inner frame which will support the latticework and add stiffness to the assembled piece.  The latticework is connected to this inner frame by through tenons and these will be hidden by the tray rather than made visible.  The dovetails on this inside frame are visible, but hidden when installed, all other joinery will be hidden or otherwise disguised.

I begin the frame by marking out for the mitered corner bridle joints.

18a71cd6-af20-4b4f-8ed3-56e68c538ca6_zpslxxzou2r

Followed by cutting out those joints and clearing the waste with a chisel.

cbbf33f2-bed2-4bfe-b413-348a64579d1b_zpsgjawmt7j

67e49c20-dc2d-43a8-bbc4-7e9bc928e013_zpsvh1lcu9v

We’re left with the interlocking joint with mitered corners.

9a5a9f03-1ab5-490b-b1fa-0785347897bb_zpsaepgmjdq

After creating all four and paring the corners to fit, I test fit inside the tray surround.

a1b862e9-a919-44fd-8bb9-c4ba3f679376_zpsl7uy92ou

Now that it is fitted I can begin the latticework, I do so by first sizing all of the pieces to length, then marking for their outside tenons.

7ff58dda-812e-49c6-8bdb-1f57bdd667f1_zpsbklw4irs

After sawing the tenons I’m ready to saw the half lap joints.  I do this while the parts are ganged up so that they will be perfectly spaced.

1a841d95-f918-4f58-b098-f16378cb0c8c_zpslcp2rojx

After clearing the waste with a chisel I’m ready to assemble the latticework.

795be2ce-de1e-4f62-b6e3-05b522af96d2_zpsndtdy6my

Finally I mark out the 16 through tenons and begin chopping them.  One they’re wasted out the frame can be assembled and test fitted.  Finally the finished assembly is glued up and fitted into the box.

25a424a9-0a07-4e07-bb6f-8c01a8719f08_zpsky9imsg6

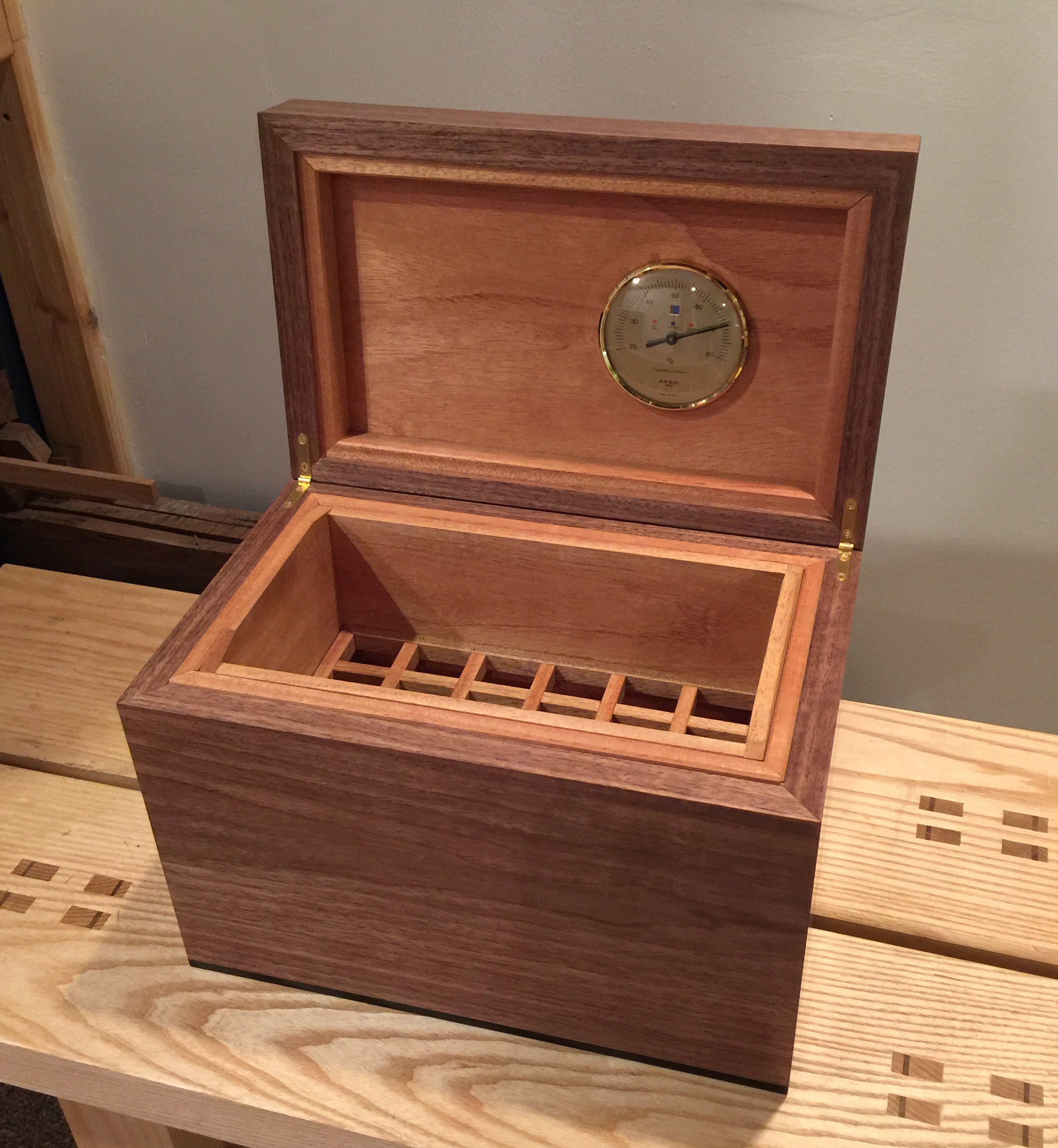

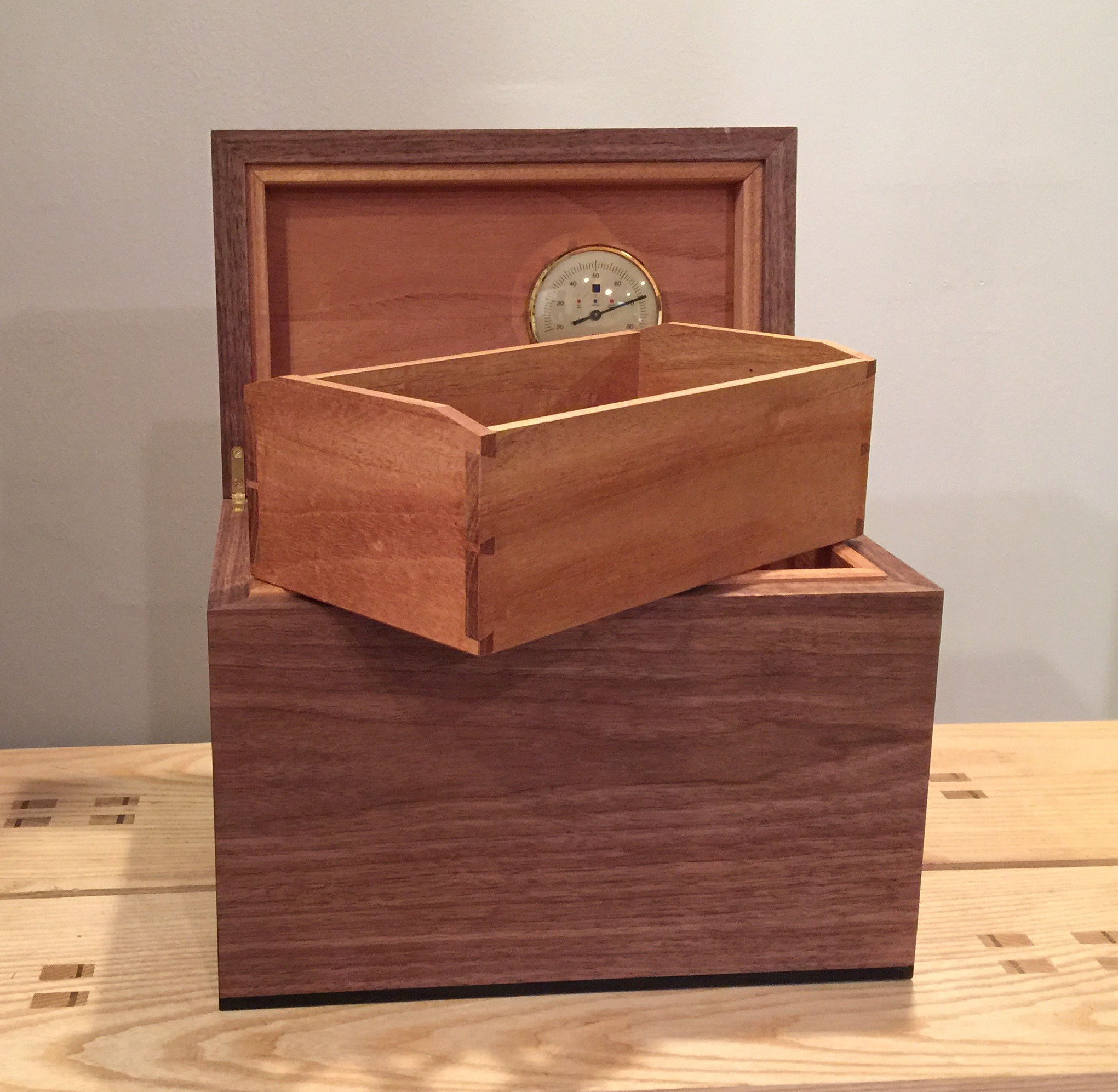

Now that the tray is completed I do some minor planing to touch up the outside and ensure a smooth fit.  The fit is going to be adjusted after the tray comes up to working humidity, and safe to say it needs to be ever so slightly loose to ensure that it won’t stick once the humidity rises to a level for cigar storage.

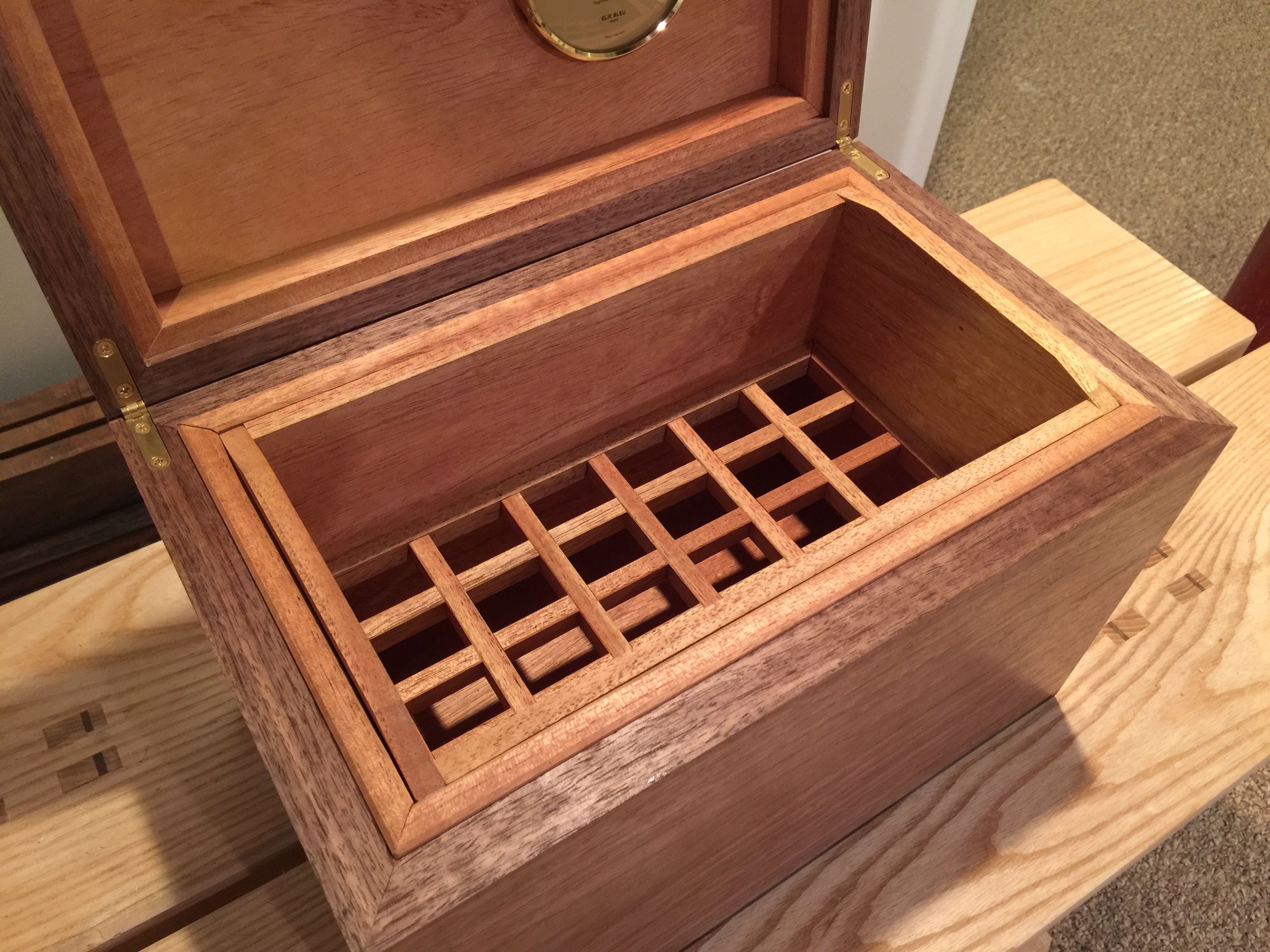

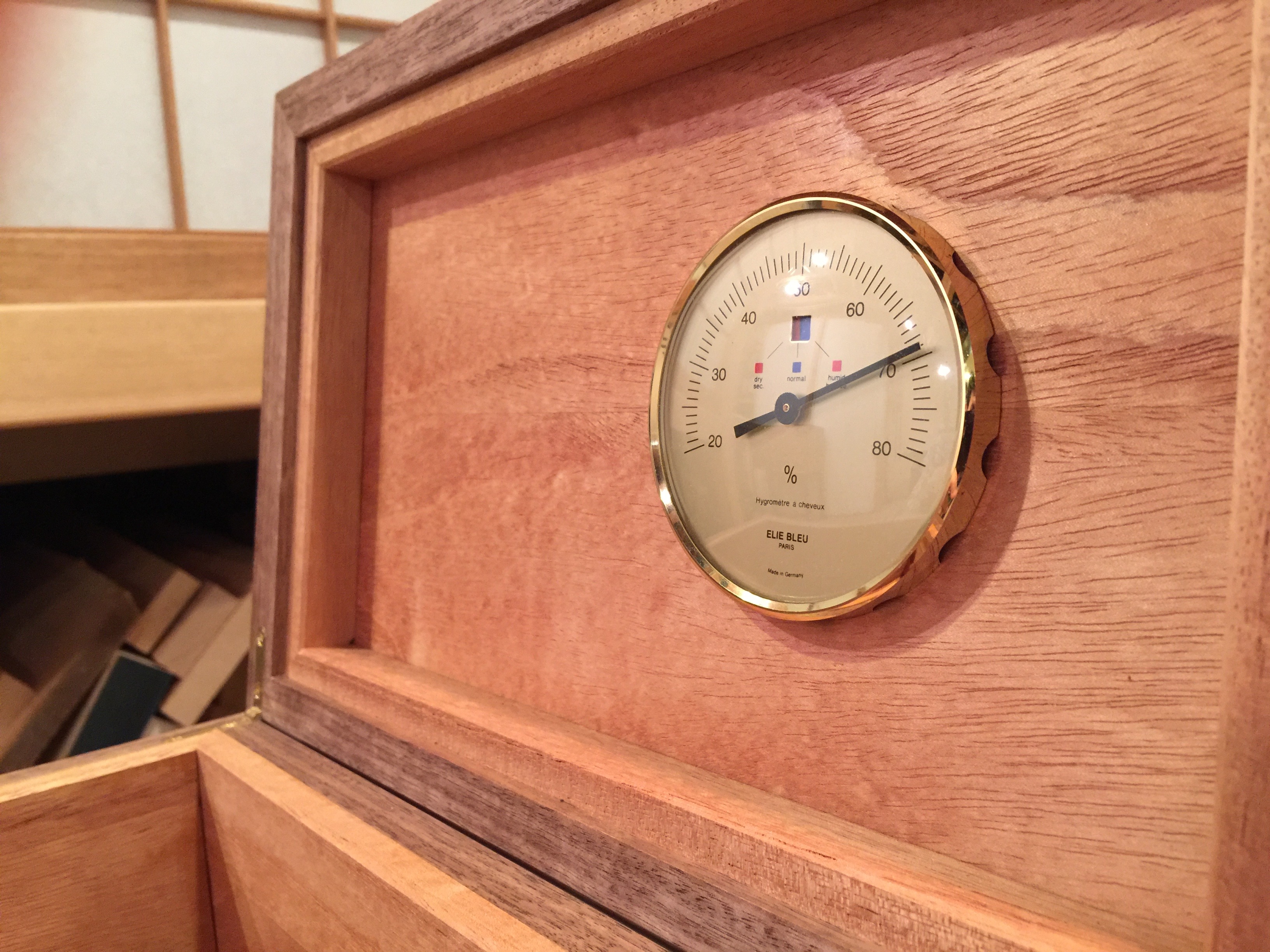

The inside of the box is basically complete, less the humidifier.  Next I can begin French polishing the exterior of the box.

I hope you have enjoyed this post and encourage you to comment and ask questions!
